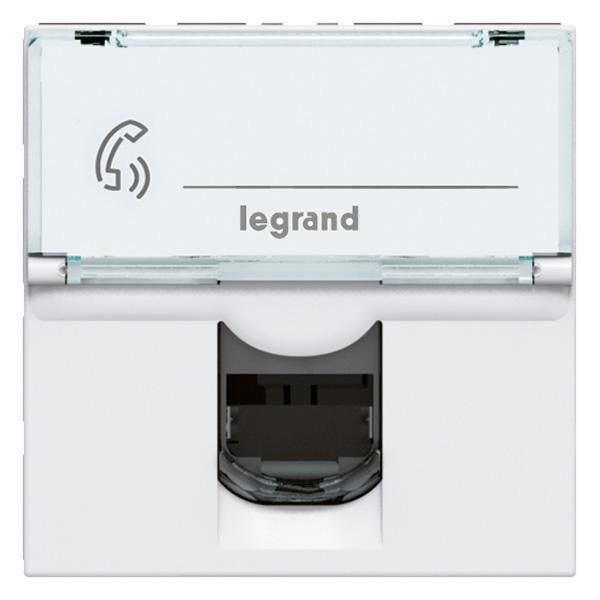

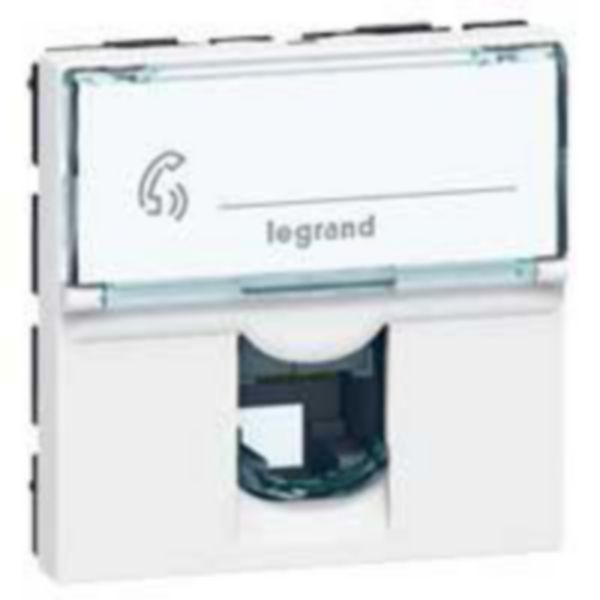

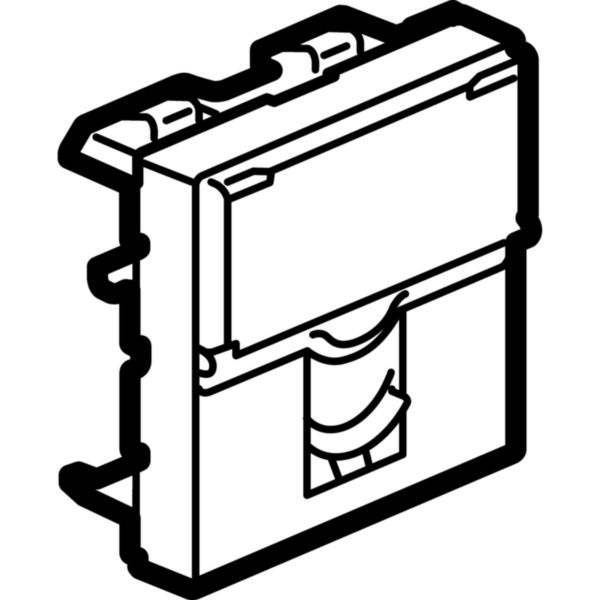

Mosaic™ - Telephone socket - RJ11 - 4 contacts - 2 modules - white
Mosaic™
LEGRAND
Mosaic™ - Telephone socket - RJ11 - 4 contacts - 2 modules - white
REF. 078731
EAN.
3245060787318
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Surface mounting | No |
|---|---|
| Flush-mounted installation | Yes |
| Duct installation | Yes |
| Floor box/subfloor mounted | Yes |
| Type of fastening | Engage (snap) |
| Assembly arrangement | Modular device for domestic switching devices |
| Type of connector | Other |
| Category | 3 |
| Connection type | Other |
| Shielded housing | No |
| Separate earthing connection | Yes |
| With label space | Yes |
| Separate strain relief | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
|---|---|
| With dust cover | Yes |
| Degree of protection (IP) | IP20 |
| Mechanical coding | No |
| Colour coding | No |
| Device width | 45 mm |
| Device height | 45 mm |
| Number of modules (module system) | 2 |
| Built-in depth | 40 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Halogen free | Yes |
| Antimicrobial treatment | No |
Documentation
1 document
Instruction Use
2 documents
Catalogue Commercial Page
Catalogue Commercial Page
2 documents
BIM Data
BIM Data
