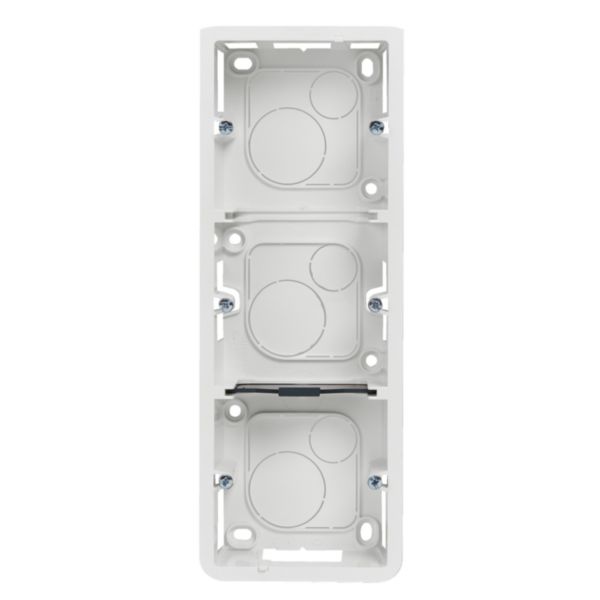

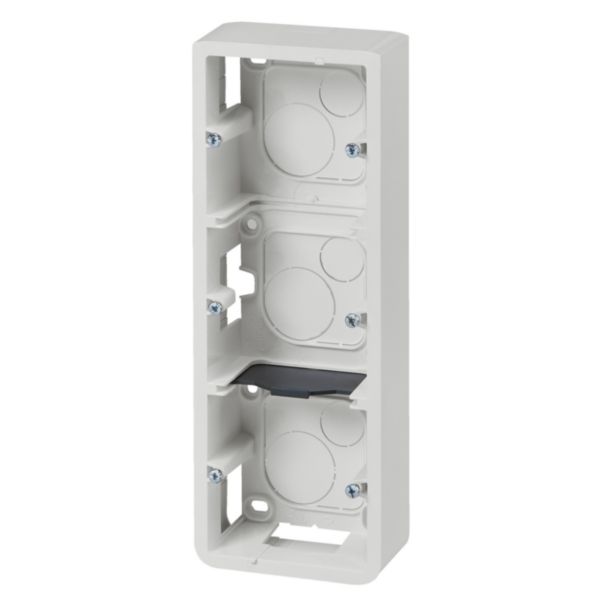

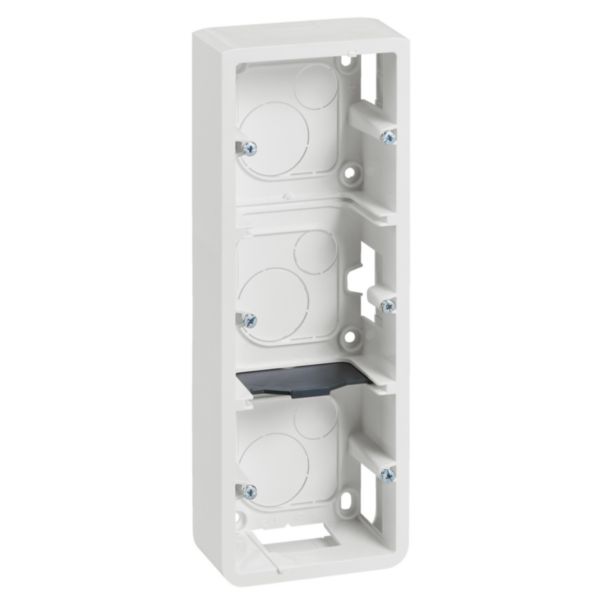

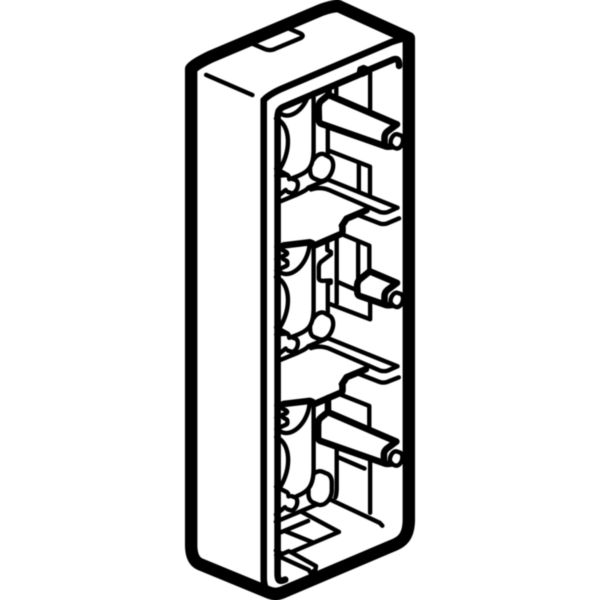

Mosaic™ - Surface-mounting box - 3 x 2 vertical modules - depth 40 mm

Name: Mosaic™ - Surface-mounting box - 3 x 2 vertical modules - depth 40 mm
SKU: 080283

Mosaic™ LEGRAND

REF. 080283 EAN. 3245060802837

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme surface - mounting boxes and adaptors
Surface - mounting boxes for 3 x 2 vertical modules (support Cat.No 0 802 53) - Equipped with a 20 x 12.5 mm removable entry - Depth 40 mm

Assembly arrangement	Surface mounted frame
Suitable for modular domestic switching devices	Yes
Number of modules (module system)	6
Number of units	1
Mounting direction	Vertical
Shape	Rectangular
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003

Transparent	No
With cover frame	No
With duct entry	Yes
With cable entry	Yes
With screw gland entry	No
Shock resistant	Yes
Degree of protection (IP)	IP2X
Width	225 mm
Height	83 mm
Depth	40 mm
degree of impact strength (IK)	IK02
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
