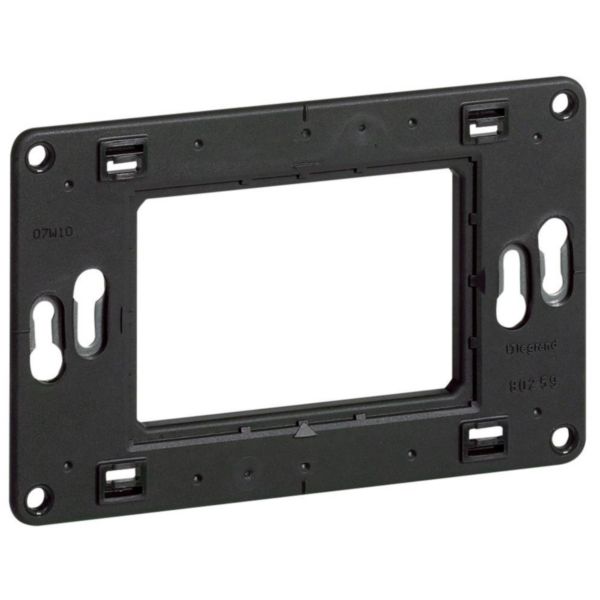

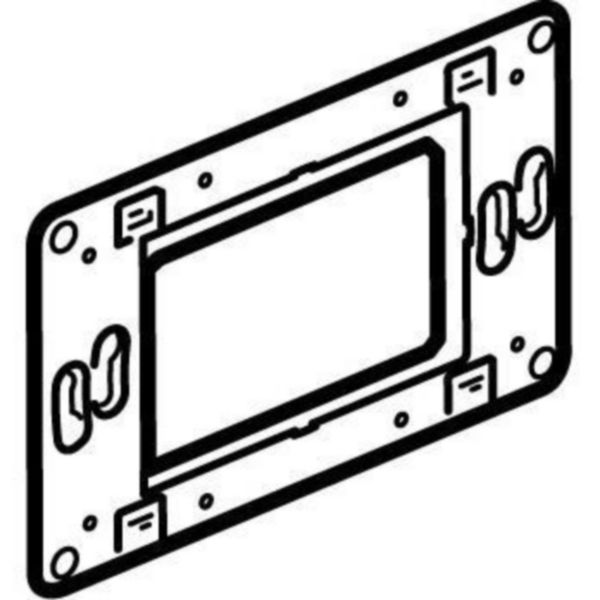

Mosaic™ - Support - with site protection - for 3 modules
Mosaic™
LEGRAND
Mosaic™ - Support - with site protection - for 3 modules
REF. 080259
EAN.
3245060802592
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Flush-mounted |
|---|---|
| Type of fastening | Mounting with screw |
| With nail | No |
| Depth | 7.2 mm |
| Height | 71 mm |
| Number of modules horizontal (module system) | 3 |
| Number of modules vertical (module system) | 1 |
| With built-in installation box | No |
| With screws | No |
| Width | 113 mm |
| Flush-mounted installation | Yes |
|---|---|
| Suitable for subfloor installation duct box | No |
| Suitable for wall duct | No |
| Mounting direction | Horizontal and vertical |
| Material | Metal |
| Material quality | Other |
| Surface protection | Galvanic/electrolytic zinc plated |
| Suitable for mounting on DIN-rail 35 mm | No |
| Mounting method of the module inserts | Front side |
| Suitable for mounting in round junction box 60 mm | No |
Documentation
2 documents
Technical Sheet
Technical Sheet
1 document
Catalogue Commercial Page
3 documents
3D Autocad
BIM Data
BIM Data
13 documents
Agreement
Agreement
AENOR-030/002285
(0.47 Mo)
Agreement
OC / CB-FR_707532/M1
(1.51 Mo)
Agreement
OC / CB-FR_705591/A3
(0.73 Mo)
Agreement
OC / CB-FR_707308/A3
(4.23 Mo)
Agreement
MEEI-UP 69267544 001
(2.21 Mo)
Agreement
OC / CB-HU-005377
(0.56 Mo)
Agreement
NF App Domestic-NF012_2275/A2
(0.96 Mo)
Agreement
NF App Domestic-NF012_4512/M1
(0.91 Mo)
Agreement
OC / CB-HU-005009-A1/M1
(0.73 Mo)
Agreement
OC / CB-HU-005022-M1
(0.7 Mo)
Agreement
NF App Domestic-NF012_2201/A2
(1.3 Mo)
Agreement
MEEI-UP 69267544 002
(1.23 Mo)
