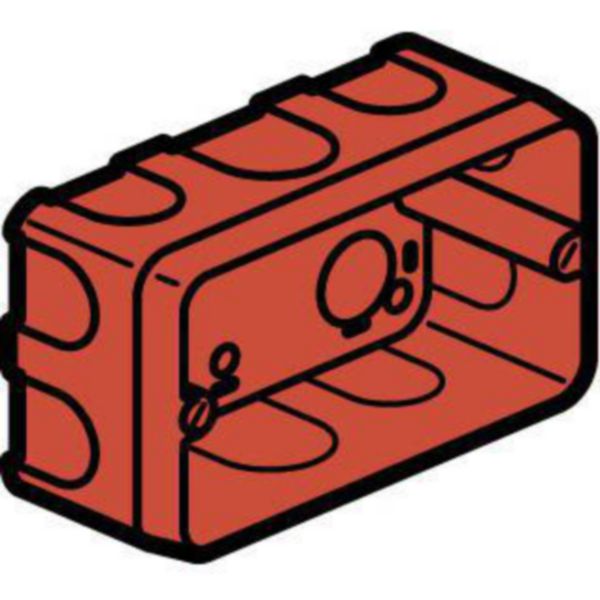

Name: Mosaic™ - Flush mounting box Batibox - 3 modules /Vela - depth 40 mm - masonry
SKU: 080149

Mosaic™ - Flush mounting box Batibox - 3 modules /Vela - depth 40 mm - masonry

Mosaic™ LEGRAND

Mosaic™ - Flush mounting box Batibox - 3 modules /Vela - depth 40 mm - masonry

REF. 080149 EAN. 3245060801496

Compare You can only compare 4 products, you must remove 1 to add this one

Multi-gang boxes for masonryBatibox - For 3 module Arteor, Vela, Mosaic ranges - Supplied with screws - Depth 40 mm - Knockout cable entries, Ø16 - 20 - 25

Mounting method	Facing brickwork
Shape	Rectangular
Construction type	Device connection box (round/square)
Model	One and a half
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	113 mm
Width	67 mm
Depth (Min-Max)	43-43 mm
Inner depth	40 mm
For number of electric fittings	3
Mounting switching equipment	Screw or spread out
With screws	Yes
Number of non-adjustable device fixing lugs	0
Number of adjustable device fixing lugs	0
Housing feed-through by break-out opening	Yes
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	Yes
Housing feed-through by step membrane	No
For tube diameter	20/25 mm
Suitable for cable diameter (Min-Max)	20-25 mm
Pipe locking	No
Pipe locking optional	No
Inlet from the rear	Yes

Number of inlets	14
Number of included spouts	0
Material	Plastic
Halogen free	Yes
Surface protection	Untreated
Colour	Red
Degree of protection (IP)	IP20
Cover model	None
Transparent cover	No
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
Special application	None
With partition panel	Yes
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-60 °C
Cable support	Not applicable
