Mosaic™ - Support - with site protection - for 1 module

Mosaic™ LEGRAND

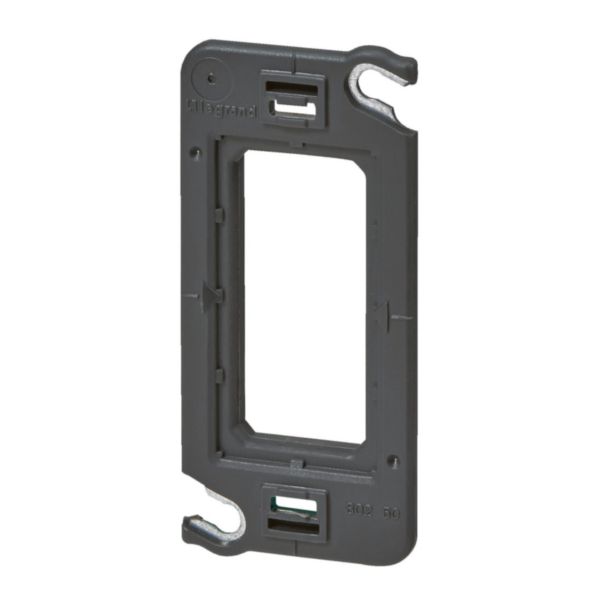

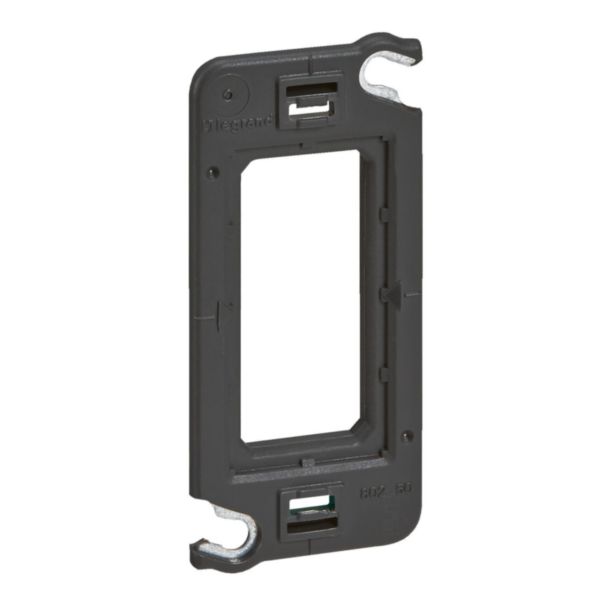

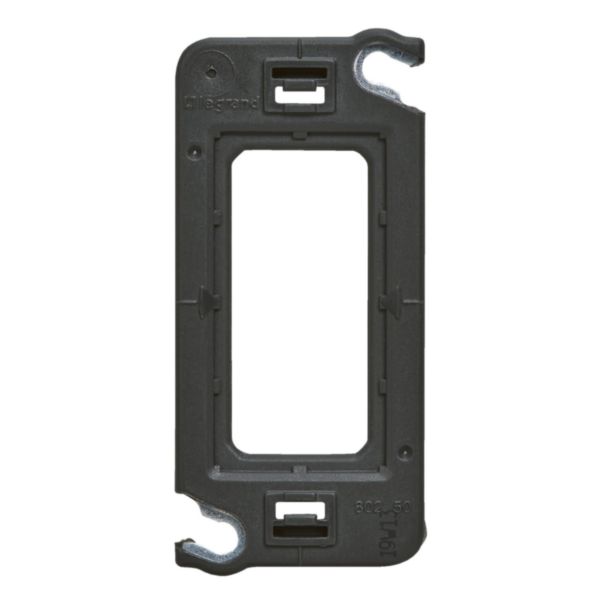

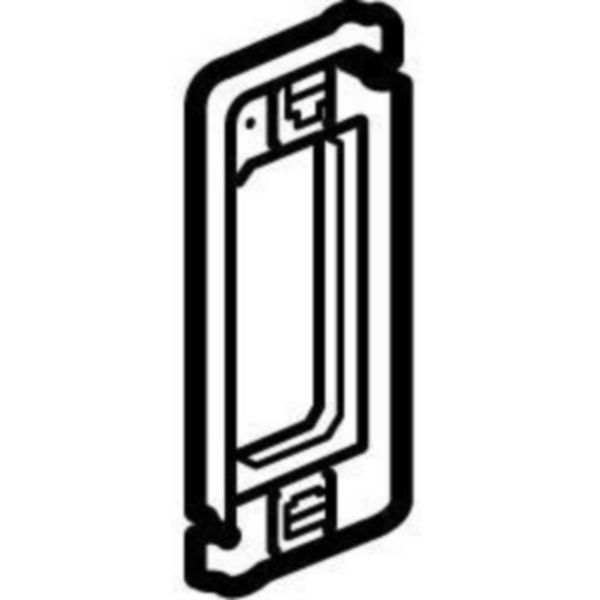

Mosaic™ - Support - with site protection - for 1 module

REF. 080250 EAN. 3245060802509
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Width 33.4 mm
Mounting method Mounting with screw
Depth 7.2 mm
Height 71 mm
Mounting method of the module inserts Front side
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With built-in installation box No
Mounting direction Vertical
Suitable for mounting in round junction box 60 mm No
With nail No
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for mounting on DIN-rail 35 mm No
Model Flush-mounted
Material quality Other
Surface protection Galvanic/electrolytic zinc plated
Material Metal
With screws No
Flush-mounted installation Yes

Documentation

2 documents
Technical Sheet
F00440FR-02.pdf pdf (0.66 Mo)
Technical Sheet
F00440EN-02.pdf pdf (0.66 Mo)
1 document
Catalogue Commercial Page
ex223001_1204.pdf pdf (0.18 Mo)
3 documents
BIM Data
BIM Data
BIM Data
15 documents
PEP
LGRP-01081-V02.01-FR.pdf pdf (0.86 Mo)
Agreement
B.B.J-B/12/006/24 (3.34 Mo)
PEP
LGRP-01024-V02.01-FR.pdf pdf (0.85 Mo)
Agreement
Agreement
Agreement
OC / CB-FR_709181 (0.68 Mo)
Agreement
OC / CB-HU-005022 (0.62 Mo)
Agreement
AENOR-030/002285 (0.47 Mo)
Agreement
NF-NF012_4512 (0.86 Mo)
Agreement
OC / CB-FR_709703 (1.06 Mo)
Agreement
NF-NF012_2666/M1 (1.1 Mo)
Agreement
NF-NF012_2275/A2 (0.96 Mo)
PEP
LGRP-01330-V02.01-EN.pdf pdf (0.82 Mo)
Agreement
B.B.J-B12/005/24 (4.62 Mo)
Agreement
