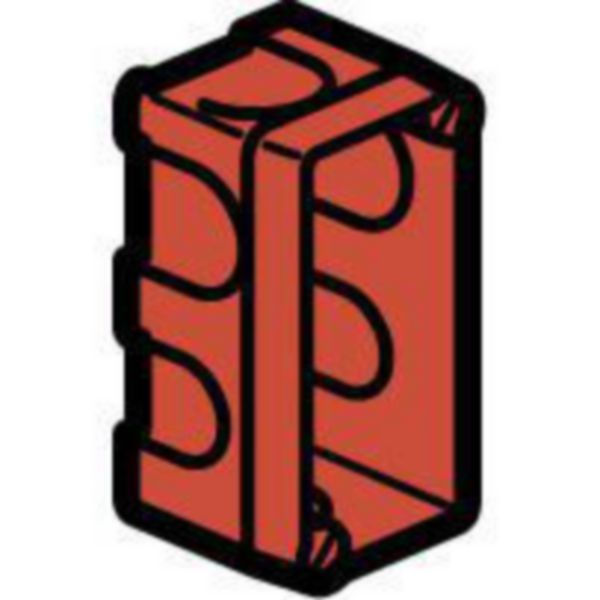

Name: Mosaic™ - Flush mounting box Batibox - 1 gang for 1 module - masonry
SKU: 080140

Mosaic™ - Flush mounting box Batibox - 1 gang for 1 module - masonry

Mosaic™ LEGRAND

Mosaic™ - Flush mounting box Batibox - 1 gang for 1 module - masonry

REF. 080140 EAN. 3245060801403

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Facing brickwork
Shape	Rectangular
Construction type	Device connection box (round/square)
Model	Single
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	74 mm
Width	35 mm
Depth (Min-Max)	33.5-33.5 mm
Inner depth	30 mm
For number of electric fittings	1
Mounting switching equipment	Screw or spread out
With screws	Yes
Number of non-adjustable device fixing lugs	0
Number of adjustable device fixing lugs	0
Housing feed-through by break-out opening	Yes
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	Yes
Housing feed-through by step membrane	No
For tube diameter	20/25 mm
Suitable for cable diameter (Min-Max)	16-20 mm
Pipe locking	No
Pipe locking optional	No
Inlet from the rear	Yes

Number of inlets	6
Number of included spouts	0
Material	Plastic
Halogen free	Yes
Surface protection	Untreated
Colour	Red
Degree of protection (IP)	IP20
Cover model	None
Transparent cover	No
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
Special application	None
With partition panel	No
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-60 °C
Cable support	Not applicable
