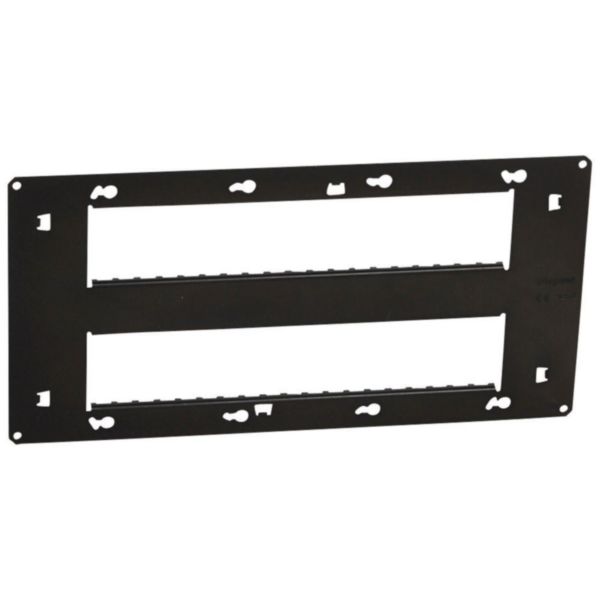

Mosaic™ - Support - for 2 x 10 modules

Mosaic™ LEGRAND

Mosaic™ - Support - for 2 x 10 modules

REF. 080268 EAN. 3245060802684
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Flush-mounted
Mounting method Mounting with screw
With nail No
Mounting method of the module inserts Front side
Mounting direction Horizontal and vertical
Number of modules horizontal (module system) 10
Number of modules vertical (module system) 2
With built-in installation box No
With screws No
Suitable for mounting in round junction box 60 mm No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for mounting on DIN-rail 35 mm No
Material Metal
Material quality Other
Surface protection Galvanic/electrolytic zinc plated

Documentation

2 documents
Technical Sheet
F00440FR-02.pdf pdf (0.66 Mo)
Technical Sheet
F00440EN-02.pdf pdf (0.66 Mo)
1 document
Catalogue Commercial Page
ex223001_1204.pdf pdf (0.18 Mo)
2 documents
BIM Data
BIM Data
11 documents
Agreement
B.B.J-B/12/006/24 (3.34 Mo)
Agreement
Agreement
Agreement
OC / CB-HU-005022 (0.62 Mo)
Agreement
NF-NF012_2201/A2 (1.3 Mo)
Agreement
AENOR-030/002285 (0.47 Mo)
Agreement
NF-NF012_4512 (0.86 Mo)
Agreement
Agreement
NF-NF012_2275/A2 (0.96 Mo)
Agreement
Agreement
B.B.J-B12/005/24 (4.62 Mo)
