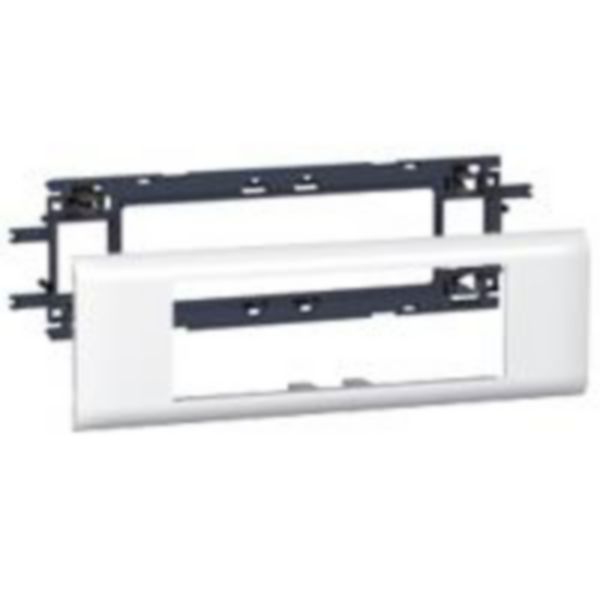

Mosaic support 6 modules for 65mm cover
DLP
LEGRAND
Mosaic support 6 modules for 65mm cover
REF. 010956
EAN.
3245060109561
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of units | 1 |
|---|---|
| Mounting direction | Horizontal |
| Number of units horizontal | 1 |
| Number of units vertical | 1 |
| Number of modules horizontal (module system) | 6 |
| Flush-mounted installation | No |
| Suitable for subfloor installation duct box | No |
| Suitable for wall duct | Yes |
| Suitable for built-in installation | No |
| Label space/information surface | No |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
|---|---|
| RAL-number (similar) | 9003 |
| Transparent | No |
| With hinged lid | No |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Type of fastening | Other |
| Width | 210.4 mm |
| Height | 67.5 mm |
| Depth | 9.9 mm |
| Operating / setting temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
| Latin wood species | Not applicable |
| Certification of wood (list) | Not applicable |
| Wood Climate area | Not applicable |
