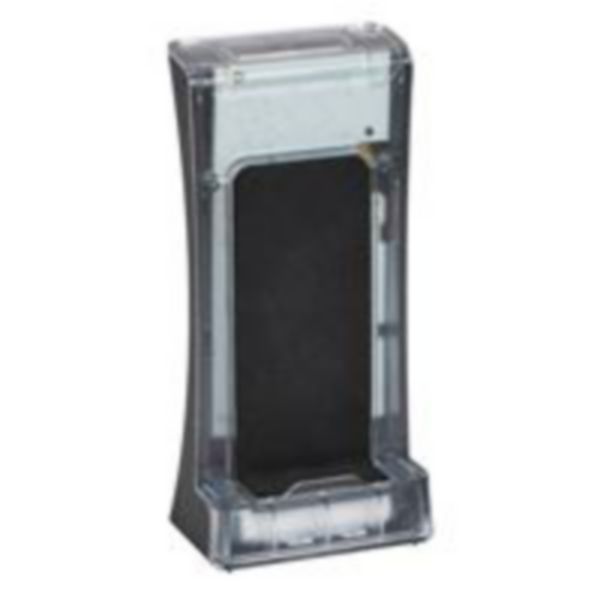

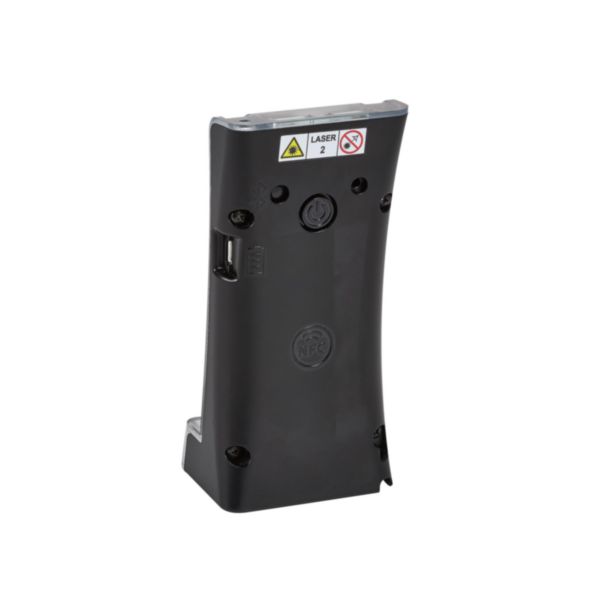

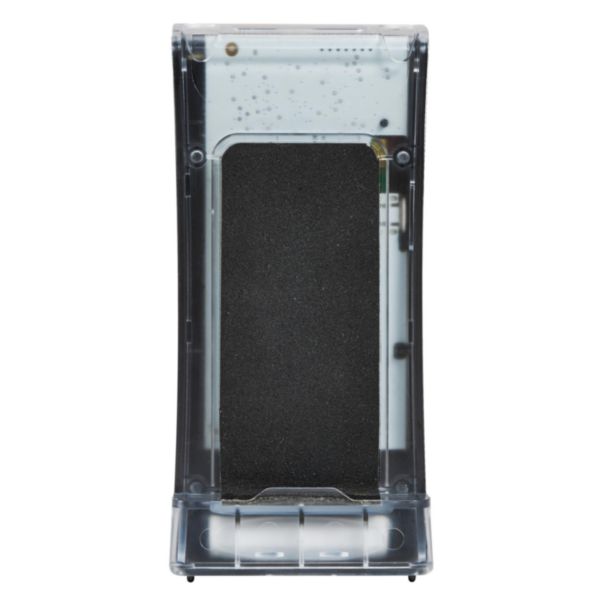

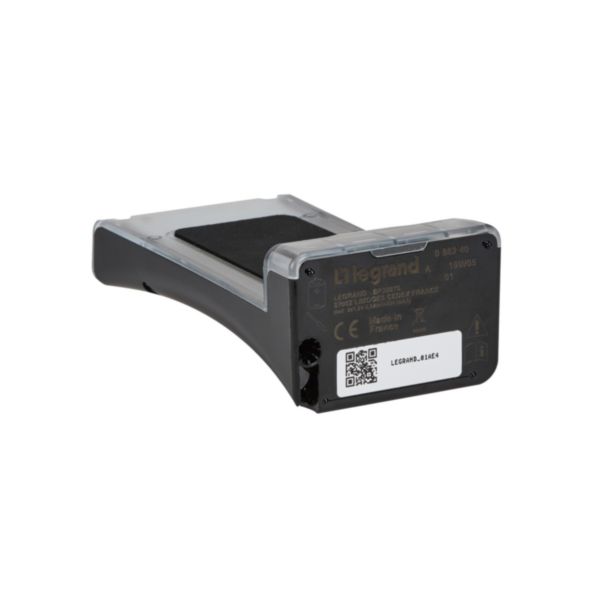

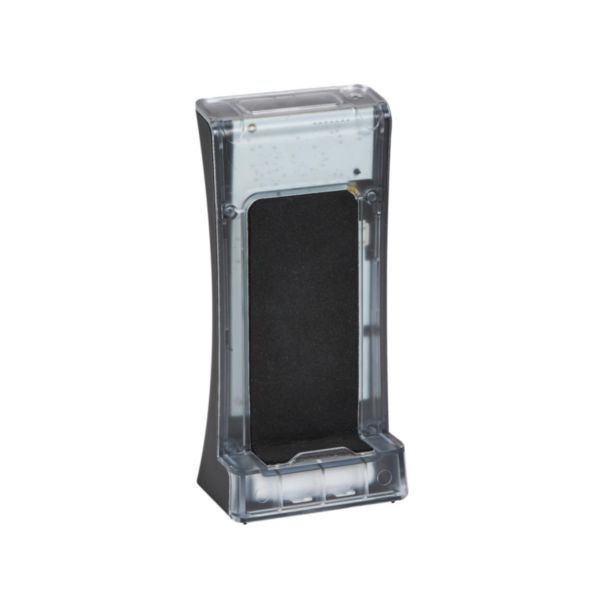

Name: Mosaic™ - Smart Bluetooth configuration gateway for multi-application configuration tool
SKU: 088240

Mosaic™ - Smart Bluetooth configuration gateway for multi-application configuration tool

Mosaic™ LEGRAND

Mosaic™ - Smart Bluetooth configuration gateway for multi-application configuration tool

REF. 088240 EAN. 3414971406193

Compare You can only compare 4 products, you must remove 1 to add this one

Setting of all parameters on the app running of a smartphone - Instant programming control
Used to display the parameters of each sensor
Store and recall product settings file
Easy configuration copy and paste
operational test functions

Use a mini USB cable (not supplied) for recharging the configuration tool with a standard USB socket

working with the Legrand Close Up app available on Android platforms (Play Store) and iOS (Apple Store)

With this configuration tool you can configure products before, during and after installation, whether switched on or off, using NFC and IR communication

Settings file management allows saving and sharing configuration files, selection of template files, and comparison of product settings with the original file
Notification for any new available update to get last release of the app tool
Easy parameter setting of Legrand DALI sensors

With manual transmitter	No
Wall-mounted transmitter	No
Window transmitter	No
Signal transmission	Radio control/infrared
Number of channels	4
Mounting method	Other
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Colourless
RAL-number (similar)	9005
Transparent	Yes
Range	65 m
Suitable for switch	No
Suitable for dimmer	Yes
Suitable for venetian shutter switch	No
Suitable for indication element	No
Suitable for movement sensor	Yes
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

IFTTT support available	No
Width	63.85 mm
Height	136.8 mm
Depth	44.6 mm
degree of impact strength (IK)	IK02
Degree of protection (IP)	IP00
Operating / setting temperature	0-40 °C
Storage temperature	0-30 °C
Voltage type	DC
Nominal voltage	4.8-5.2 V
Antimicrobial treatment	No
Fitted with USB plug	Yes
Contains Batteries and/or Accumulator	Yes
Remote opening of gate / Electric door opener	No
IEC code (Pack1)	AAA
Battery ou Accumulator (Pack1)	Accumulator (rechargeable)
Element Composition (Pack1)	Nickel metal hydride
Number of Pack 1	1
Number of Single Element (Pack1)	3
Single Element weight (Pack1)	34 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	I : Industrial (not Portable)
Connected object	No
