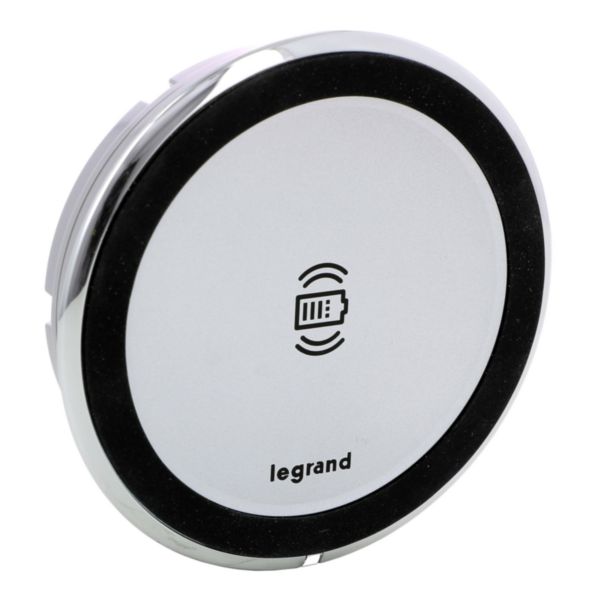

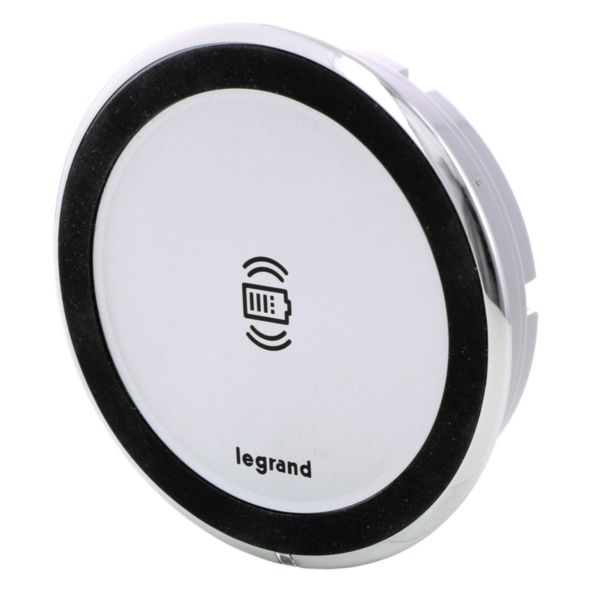

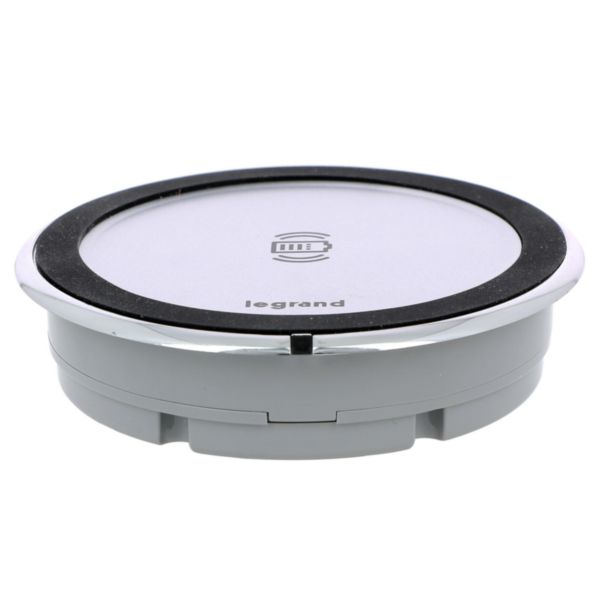

Name: Mosaic™ - Round 15 W wireless charger, 80 mm diameter Aluminium
SKU: 077641L

Mosaic™ - Round 15 W wireless charger, 80 mm diameter Aluminium

Mosaic™ LEGRAND

Mosaic™ - Round 15 W wireless charger, 80 mm diameter Aluminium

REF. 077641L EAN. 3414971941236

Compare You can only compare 4 products, you must remove 1 to add this one

Power supply via universal RJ 45 cord for ease of changing length/Charger locks under furniture with a butterfly nut

Star or series connection depending on furniture configuration, adjustment of the distance between power supply and charger with simple RJ 45 cord
Supplied with identification sticker for marking in public areas
Certified WPC QI

Model	Other
Number of ports USB-A	0
Number of ports USB-C	0
Operating voltage (Min-Max)	48-48 V
Connection type	Other
Mounting method	Flush-mounted
Colour	Grey
Device width	87 mm
Device height	87 mm
Device depth	27 mm
Min. depth of built-in installation box	0 mm
Suitable for degree of protection (IP)	IP44
degree of impact strength (IK)	IK08

Antimicrobial treatment	No
Wireless	Yes
Built-in depth	24.5 mm
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	DC
Power Delivery	No
USB Output Power	15
Supply current (Min-Max)	0.5-0.5 A
Standby consumption	0.01 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Halogen free	Yes
