Mosaic™ - RJ45 socket category 6 FTP 2 modules white

Mosaic™ LEGRAND

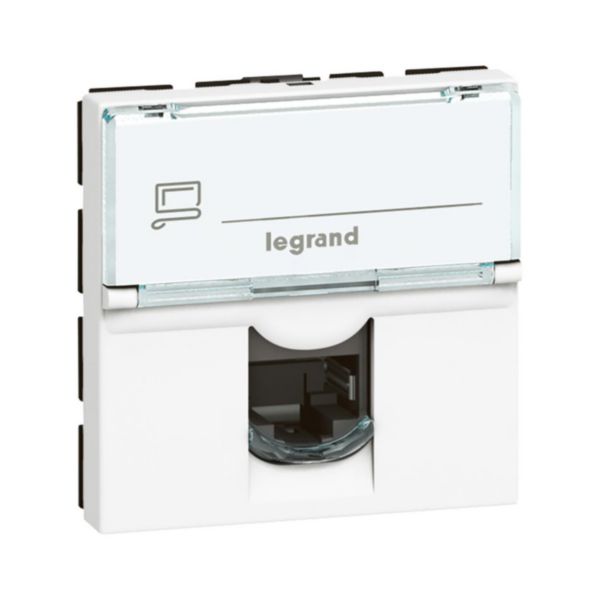

Mosaic™ - RJ45 socket category 6 FTP 2 modules white

REF. 076565 EAN. 3245060765651
Mosaic, a data socket, offers RJ45 category 6 FTP performance with 1Gbit/s data rate. Its toolless fast-connection IDC terminals and PoE support ensure efficient installation and powering. A transparent dust cover optimizes durability.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mosaic, a data socket, offers RJ45 category 6 FTP performance with 1Gbit/s data rate. Its toolless fast-connection IDC terminals and PoE support ensure efficient installation and powering. A transparent dust cover optimizes durability.

Product characteristics
  • RJ45 Cat 6 : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
  • Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
  • Equipped with a transparent protective dust cover protecting the connector.
  • 2 modules
  • White
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation
  • Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Modular device for domestic switching devices
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6
Colour White
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses No
Separate earthing connection No
With label space Yes
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Colour coding Yes
Device width 45 mm
Device height 45 mm
Device depth 35 mm
Number of modules (module system) 2
Built-in depth 25.2 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Tube diameter for wall mounted product (Min-Max) 0-0 mm
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Vertical fixing center distance (Min-Max) 0-0 mm
Horizontal fixing center distance (Min-Max) 0-0 mm
Cable support Not applicable

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.180
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
