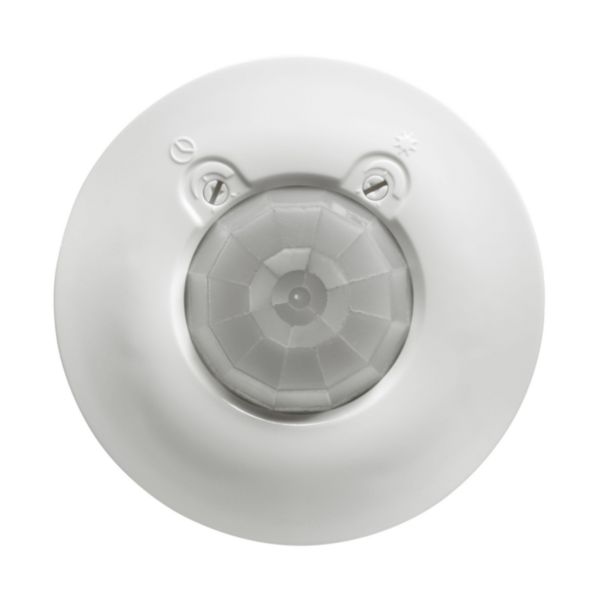

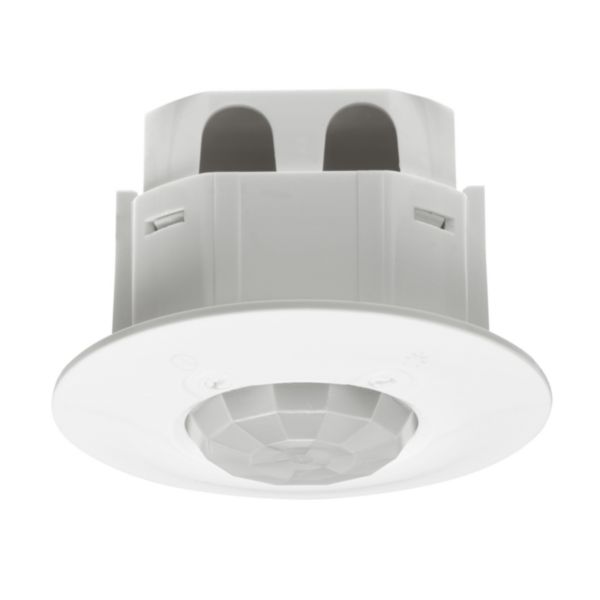

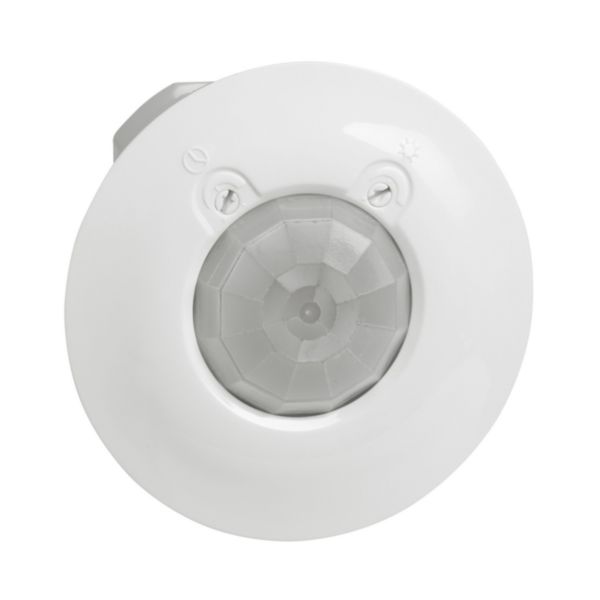

Name: Mosaic™ - PIR 360° motion sensor 8m - IP20 - false ceiling mounting
SKU: 048941

Mosaic™ - PIR 360° motion sensor 8m - IP20 - false ceiling mounting

Mosaic™ LEGRAND

Mosaic™ - PIR 360° motion sensor 8m - IP20 - false ceiling mounting

REF. 048941 EAN. 3414970595195

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Presence detector
Movement sensor/presence detector technology	Passive infrared
Constant light control	Yes
Forced switch off	Yes
Animal zone	No
Creep-under protection	Yes
Background monitoring	No
Networkable	No
Optimum mounting height	2.5 m
Max. reach sideways	8 m
Max. reach frontally	8 m
Diameter reach on floor	8 m
Suitable for wireless transmission	Yes
Remote operation	Yes
Supplied remote control	No
Response value sensitivity adjustable	Yes
Response value luminosity adjustable	Yes
Teach-function for response value luminosity	Yes
Dim function with dimmer basic element	Yes
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes

Surface protection	Other
Surface finishing	Glossy
Antimicrobial treatment	No
Colour	White
RAL-number (similar)	9003
Transparent	No
Degree of protection (IP)	IP41
Frequency	50-60 Hz
Nominal voltage	230-230 V
Min. switch-on time	10 s
Max. duty cycle	10 min
Detection angle horizontal	360-360 °
Response value luminosity	10-1275 lx
Number of switching zones	2
With alarm function	No
With acoustic sensor	No
Ambient temperature	-5-45 °C
With connection cable	No
Connection cable length	0 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
