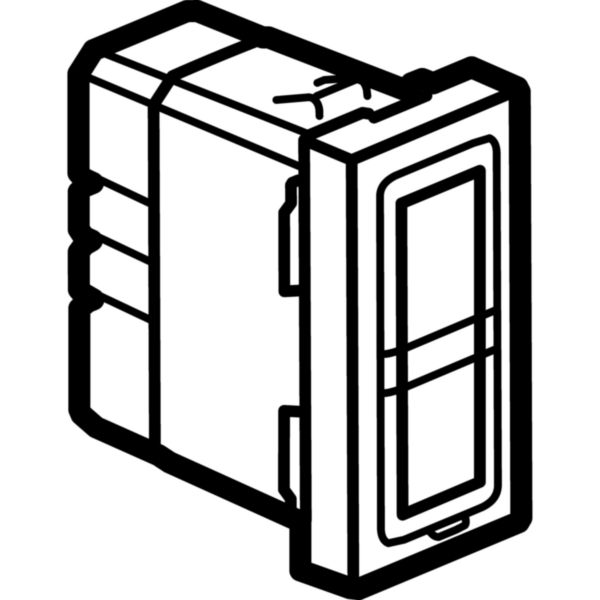

Mosaic™ - Indicator light - 4 colour labels - double ind. 230 V- 1 mod-white antiB

Name: Mosaic™ - Indicator light - 4 colour labels - double ind. 230 V- 1 mod-white antiB
SKU: 078502

Mosaic™ LEGRAND

REF. 078502 EAN. 3245060785024

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme mechanisms - illuminated signage functions, bulkhead lights, indicator lights and downlighter - All the illuminated functions are equipped with very low consumption LEDs with an estimated service life of 100,000 hours
Indicator lights - 1 module - For indicator or illuminated functions - Supplied with 4 coloured labels (red, orange, green and blue) - Double indicator 230 V (1 W) - Antimicrobial
White antimicrobial. Contains a silver compound to prevent the growth of bacteria on the surface.

Number of modules (module system)	1
Type of fastening	Engage (snap)
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Other
Colour	White
Suitable for degree of protection (IP)	IP41

Device width	22.5 mm
Device height	45 mm
Device depth	41.5 mm
Built-in depth	33 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Antimicrobial treatment	Yes
