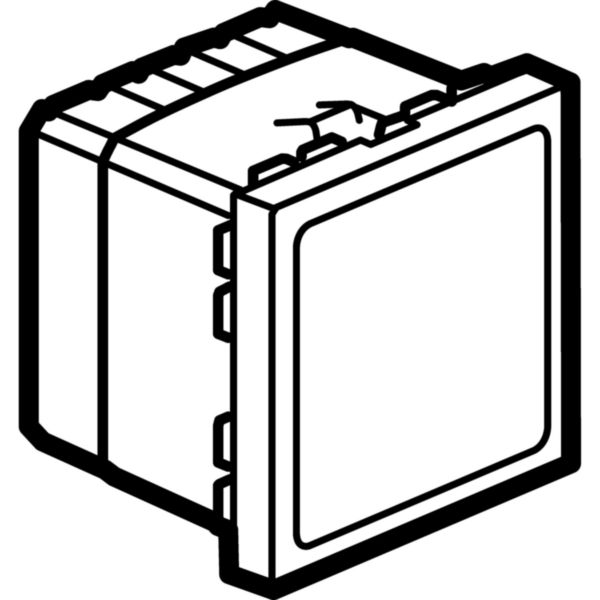

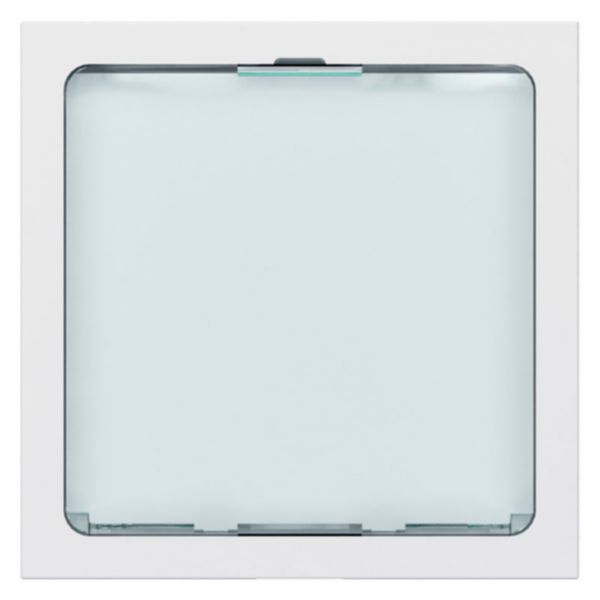

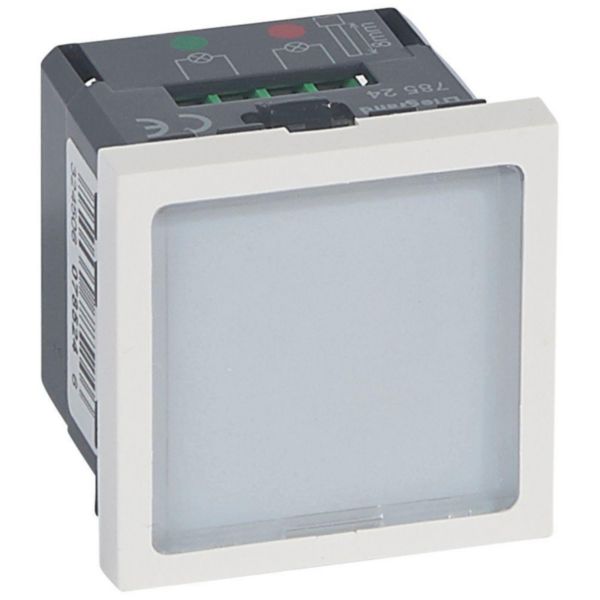

Name: Mosaic™ - Illuminated signs - 230 V~ - red/green LEDs - 2 modules - white
SKU: 078524

Mosaic™ - Illuminated signs - 230 V~ - red/green LEDs - 2 modules - white

Mosaic™ LEGRAND

Mosaic™ - Illuminated signs - 230 V~ - red/green LEDs - 2 modules - white

REF. 078524 EAN. 3245060785246

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme mechanisms - illuminated signage functions, bulkhead lights, indicator lights and downlighter - All the illuminated functions are equipped with very low consumption LEDs with an estimated service life of 100,000 hours
Llluminated signs 230 V~ - Mechanisms integrating LEDs and a pivoting window that can take preprinted labels - Customised labels can be printed using a simple text editor - Supplied with transparent paper to personalize labels - Signs with 2 - state LEDs with choice of green or red configurable on the mechanism (1 W) - 2 modules

Assembly arrangement	Basic element with central cover plate
Number of modules (module system)	2
Lamp holder	Other
With light source	Yes
Lamp type	LED not exchangeable
With flashlight	No
With fixed symbol/imprint	Yes
With exchangeable symbol	No
Application as button	No
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003
Transparent	Yes
Colour light source	Red/green

Suitable for degree of protection (IP)	IP41
Nominal voltage	230 V
Max. lamp power	1 W
Device width	45 mm
Device height	45 mm
Device depth	41.3 mm
Min. depth of built-in installation box	40 mm
Built-in depth	32.7 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	Yes
Stress test conformity (1000V)	No
Antimicrobial treatment	No
Connection type	Screwed terminal
Cable section (Min-Max)	2.5-2.5 mm²
Label space/information surface	Yes
