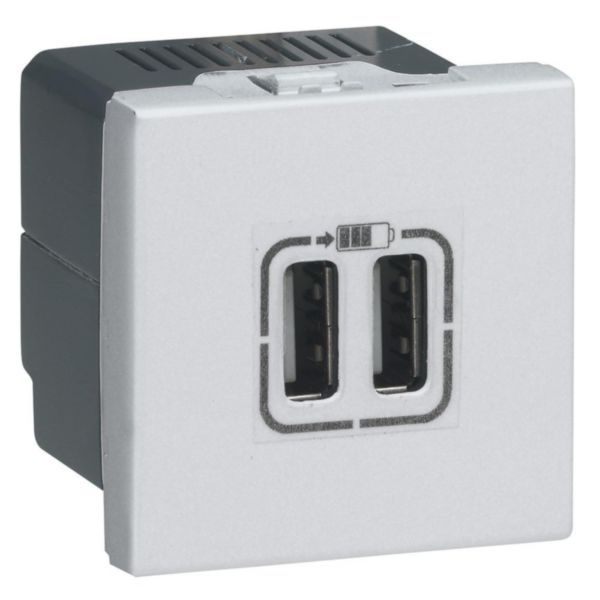

Mosaic™ - Double USB socket - 5V - 1500 mA - 2 modules - Alu

Mosaic™ LEGRAND

Mosaic™ - Double USB socket - 5V - 1500 mA - 2 modules - Alu

REF. 079394 EAN. 3245060793944

Mosaic™ Programme mechanisms - USB charging socketsUSB charging sockets- 2 modules - Alu

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mosaic™ Programme mechanisms - USB charging socketsUSB charging sockets- 2 modules - Alu

Product characteristics
  • Mosaic™ Programme mechanisms - USB charging sockets
  • USB charging sockets- For recharging portable devices- Conform to IEC 62684-2011-01- Consumption in passive mode < 0.1 W- 2P+E tap-off connection via 2.5 mm2 screw terminals- Supplied cordlessDouble USB sockets - 5V- 2400 mA- (1500 mA until 1-07-2016)- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC- 2 modules - Alu- Can be installed in receptacles for floor sockets

Technical characteristics

Number of modules (module system) 1
Model Other
Number of ports USB-A 2
Number of ports USB-C 0
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.068 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour Aluminium
RAL-number 7040
Device width 45 mm
Device height 45 mm
Device depth 42 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 33.5 mm
Operating / setting temperature (Min-Max) 0-40 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
