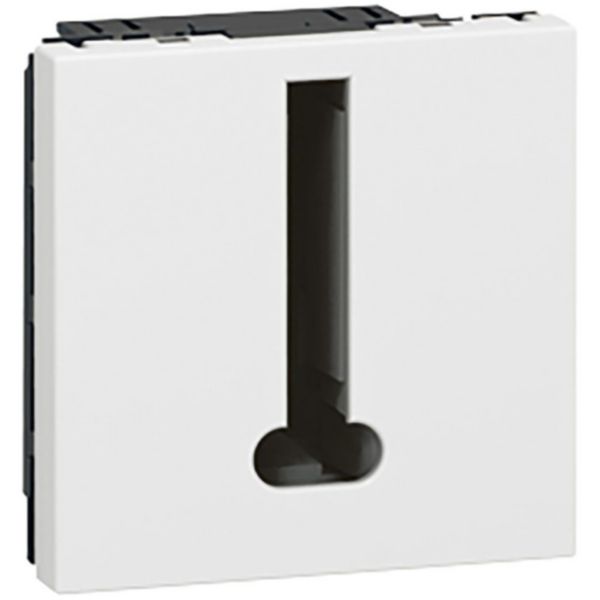

Mosaic™ - dataudtag RJ11 fransk 2M hvid

Name: Mosaic™ - dataudtag RJ11 fransk 2M hvid
SKU: 078738

Mosaic™ LEGRAND

REF. 078738 EAN. 3245060787387

Compare You can only compare 4 products, you must remove 1 to add this one

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	Yes
Floor box/subfloor mounted	Yes
Type of fastening	Engage (snap)
Assembly arrangement	Modular device for domestic switching devices
Type of connector	Other
With buses/couplings	No
Category	Other
Colour	White
RAL-number	9010
Connection type	Screw
Shielded buses	No
Shielded housing	No
Separate earthing connection	Yes
With label space	No
Separate strain relief	No
Mounting method shielding connection	None

Outlet direction	Straight
With dust cover	No
With terminal resistor	No
Degree of protection (IP)	IP20
Mechanical coding	No
Colour coding	No
Device width	45 mm
Device height	45 mm
Device depth	32.5 mm
Number of modules (module system)	2
Built-in depth	24 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
