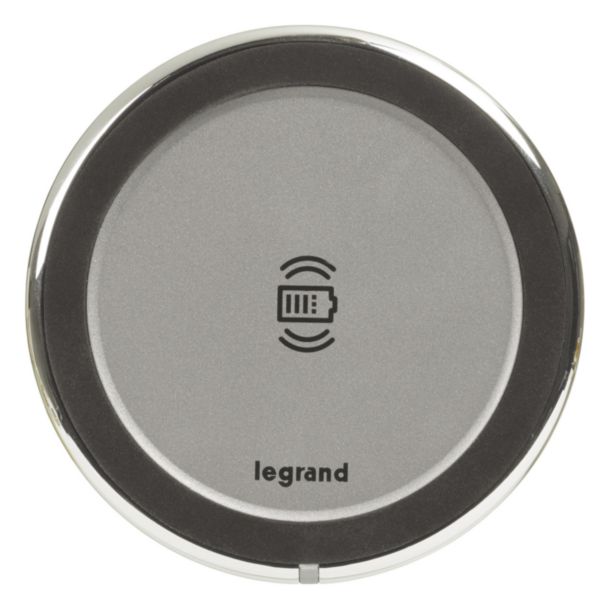

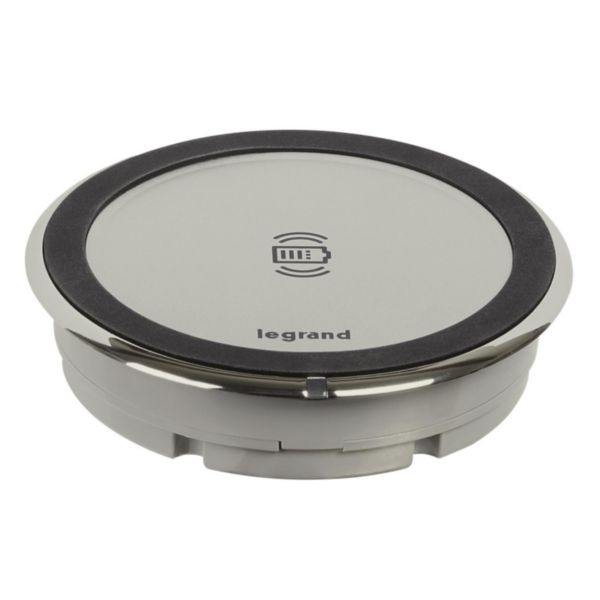

Name: Mosaic™ - Complete kit: 1 x 15 W wireless charger for furniture
SKU: 077640L

Mosaic™ - Complete kit: 1 x 15 W wireless charger for furniture

Mosaic™ LEGRAND

Mosaic™ - Complete kit: 1 x 15 W wireless charger for furniture

REF. 077640L EAN. 3414971941212

Compare You can only compare 4 products, you must remove 1 to add this one

Supplied with 25 W mobile power stick, 2.5 m RJ45 cord, Aluminium wireless charger, cable ties and adhesive bases and identification sticker for public areas
Power supply connected with 2P plug and charger connected with RJ45 cord, 80 mm drilling diam
Charger with non-slip coating
CE

Power supply via universal RJ 45 cord for ease of changing length/Locks under furniture with a butterfly nut

Number of modules (module system)	2
Model	Other
Number of ports USB-A	0
Number of ports USB-C	0
Operating voltage (Min-Max)	48-48 V
Frequency (Min-Max)	50-60 Hz
Power consumption	25 W
Connection type	Other
Mounting method	Flush-mounted
Colour	Grey
Device width	87 mm
Device height	87 mm
Device depth	27 mm
Min. depth of built-in installation box	0 mm
Suitable for degree of protection (IP)	IP44

degree of impact strength (IK)	IK08
Antimicrobial treatment	No
Wireless	Yes
Built-in depth	24.5 mm
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	DC
Power Delivery	No
USB Output Power	15
Supply current (Min-Max)	0.5-0.5 A
Standby consumption	0.01 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Halogen free	Yes

Mosaic™ - Complete kit: 1 x 15 W wireless charger for furniture
