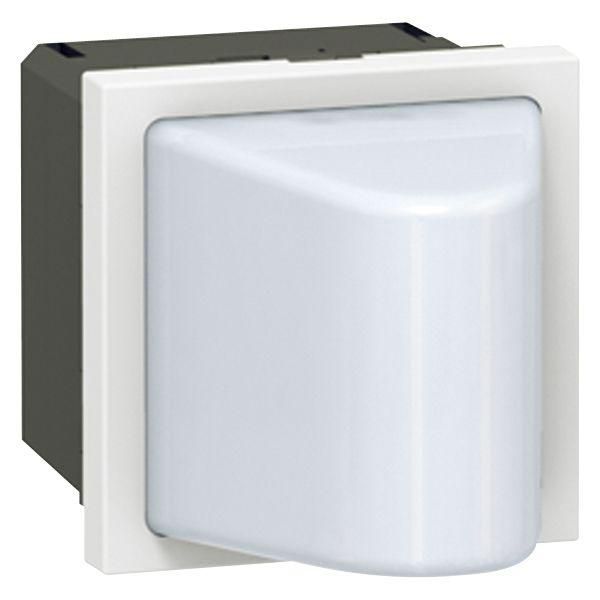

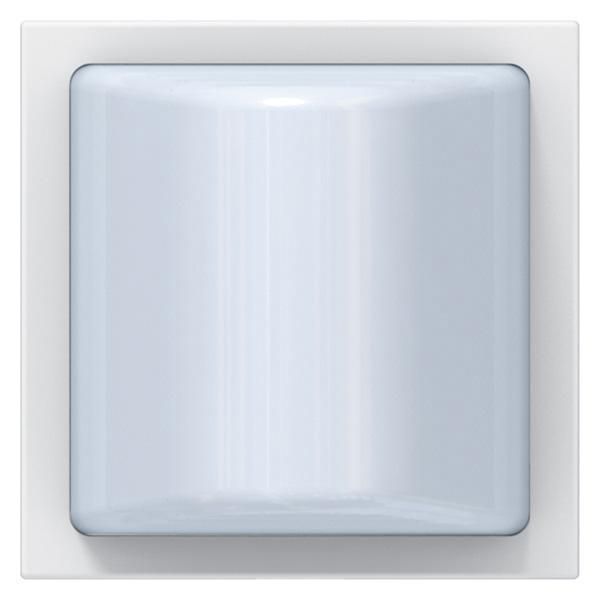

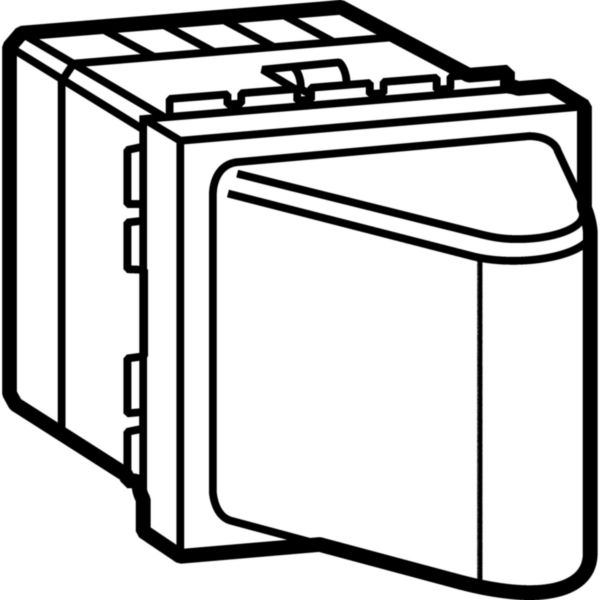

Mosaic™ - Bulkhead - 12-24 V~/= - 0.6 W - 2 modules - White

Name: Mosaic™ - Bulkhead - 12-24 V~/= - 0.6 W - 2 modules - White
SKU: 078561

Mosaic™ LEGRAND

REF. 078561 EAN. 3245060785611

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme mechanisms - illuminated signage functions, bulkhead lights, indicator lights and downlighter - All the illuminated functions are equipped with very low consumption LEDs with an estimated service life of 100,000 hours
Bulkheads - 2 modules - 12 - 24 V~ / = - 0,6 W - White

Assembly arrangement	Basic element with central cover plate
Number of modules (module system)	2
Lamp holder	Other
With light source	Yes
With flashlight	No
With fixed symbol/imprint	No
With exchangeable symbol	Yes
Application as button	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White

Transparent	No
Colour light source	White
Suitable for degree of protection (IP)	IP41
Nominal voltage	24 V
Max. lamp power	0.7 W
Device width	45 mm
Device height	45 mm
Device depth	76.4 mm
Built-in depth	32.7 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Connection type	Screwed terminal
Cable section (Min-Max)	2.5-2.5 mm²
