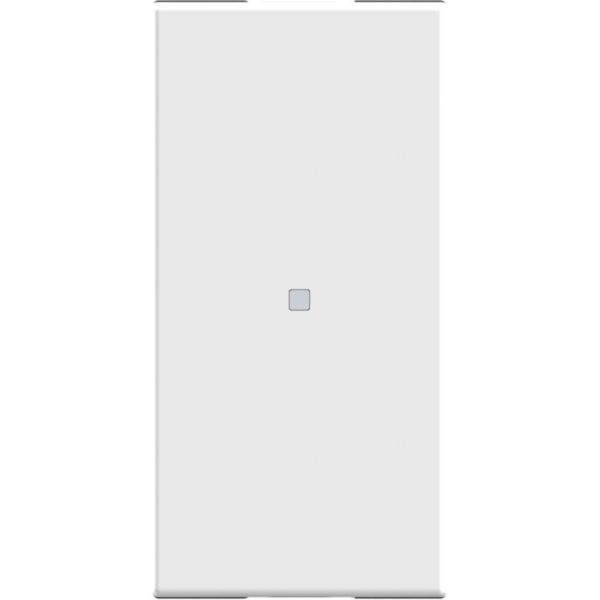

Module for connected power outlet. Classia with Netatmo

Classia Bticino

Module for connected power outlet. Classia with Netatmo

REF. BT-RW4531C EAN. 8005543651469
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • LED indicator with locator function which can be activated in the app
  • Compatible with any electrical appliance or large household appliance
  • Measures instantaneous and total electricity consumption
  • Protects against overloads (16 A maximum)
  • White
Recommendation / Restriction
  • To add a power outlet to your connected installation, you first need to purchase and install a Classia with Netatmo connected starter pack. To control your power outlet, you need to pair one or more Classia with Netatmo wireless switches with it

The product's benefits

Installation
  • The Classia with Netatmo power outlet module is easily installed in place of an existing standard power outlet and needs a standard-depth flush-mounting box.
Usage
  • Voice control of your lights and electrical appliances via a voice assistant

Technical characteristics

Suitable for dimmer No
Suitable for pulse button No
Suitable for roller shutter switch No
Suitable for venetian shutter switch No
Suitable for venetian-/roller shutter switch No
Suitable for switch No
In housing Yes
In tube base housing No
Printed circuit board/module No
Current supply 230 V AC
Push button mode No
Switching mode Yes
With manual radio transmitter Yes
With radio coding device No
With radio controlled push button No
Number of relays 1
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Type of fastening Mounting with screw
Colour White
RAL-number (similar) 9003
Transparent No
Suitable for degree of protection (IP) IP20
Degree of protection (NEMA) Other
Radio frequency 2400 MHz
Modulation FM
Rolling code system Yes
Number of commands 0
Compatible with Apple HomeKit Yes
Compatible with Google Assistant Yes
Compatible with Amazon Alexa Yes
IFTTT support available No
Width 22.5 mm
Height 45.1 mm
Depth 45.8 mm
Built-in depth 36 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 1.8 mA
Mandatory neutral Yes
Stress test conformity (1000V) No
Antimicrobial treatment No
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Energy distribution
Application name Home + Control
Programming way Smartphone apps

Documentation

2 documents
Instruction Use
LE11613AA.pdf pdf (1.2 Mo)
Technical Sheet
IDP000356_01-EN.pdf pdf (0.62 Mo)
