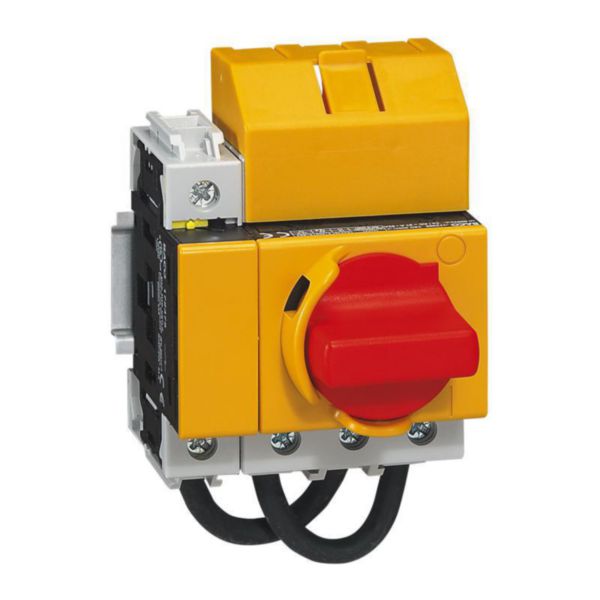

Modular Rotary Switch Disconnector - 32A - 600V DC - 4 Modules - DIN Rail Mounting - Double Break Contacts - Photovoltaic Applications

Legrand

Modular Rotary Switch Disconnector - 32A - 600V DC - 4 Modules - DIN Rail Mounting - Double Break Contacts - Photovoltaic Applications

REF. 414263 EAN. 3245064142632
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation No
Version as reversing switch No
Max. rated operation voltage Ue AC 600 V
Rated operating voltage 600-600 V
Rated short-time withstand current lcw 0.4 kA
Number of poles 2
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 0
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Complete device in housing
Suitable for floor mounting Yes
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Colour control element Red
Type of control element Toggle
Interlockable Yes
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP40

Documentation

3 documents
Technical Sheet
F01497EN-01.pdf pdf (1.3 Mo)
Instruction Use
LE04466AA.pdf pdf (0.67 Mo)
Technical Sheet
F01497FR-01.pdf pdf (1.48 Mo)
1 document
3D Autocad
414261.dwg dwg (0.1 Mo)
