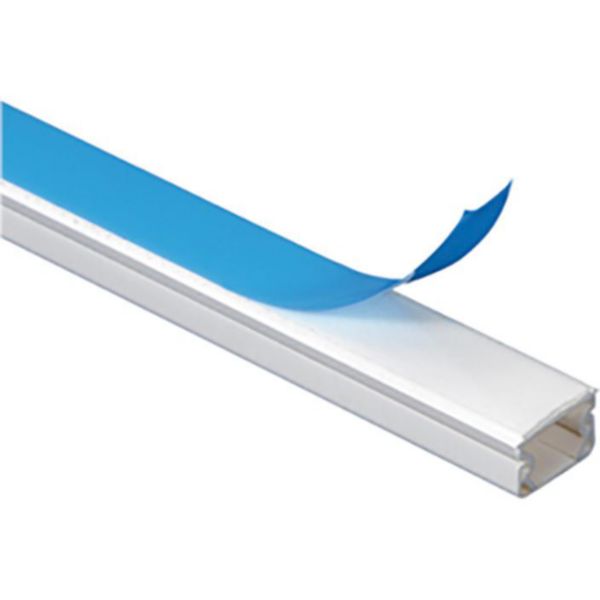

Mini trunking with adhesive 1 compartment, 20x12,5mm. White

LEGRAND

Mini trunking with adhesive 1 compartment, 20x12,5mm. White

REF. 648905 EAN. 3414970754431

Mini trunking allows distribution and protection of various cables in an electrical installation

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mini trunking allows distribution and protection of various cables in an electrical installation

Product characteristics
  • Delivered in 60 units of length 2,10m
  • Comply with reliability, safety and technical performance requirements accord EN50085 - 2 - 1
  • IP40 : protected against solid bodies larger 1mm maximum. Shock resistance at 2 joules.
  • Can be used instead of the DLPlus mini-trunking 20x12,5mm
Recommendation / Restriction
  • Can not be used outside

The product's benefits

Installation
  • Fixes on the wall thanks to 1mm thick adhesive absorbing surface unevenness
Usage
  • Can be installed in tertiary and residential
Avantages
  • Can be glued, or screwed, or nailed

Technical characteristics

Height 12.5 mm
Width 20 mm
Length 2010 mm
Usable cross section 160 mm²
Material Plastic
Material quality Polyvinyl chloride (PVC)
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Suitable for circuit integrity No
Colour White
Transparent No
RAL-number 9003
Number of permanent partitions 0
Number of plug-in partitions 0
Type of fastening Self-adhesive and bottom perforation
Cover model Loose
With cable fixing clip Yes
With protective foil No
With duct connector No
Delivery on roll No
Degree of protection (IP) Other
degree of impact strength (IK) Other
Operating / setting temperature 15-60 °C
Storage temperature -5-60 °C
