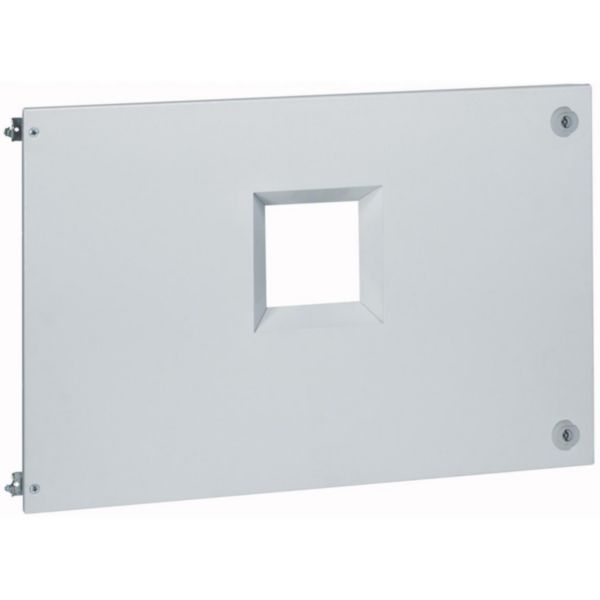

Metal faceplate XL³ 4000 - DPX 1600 draw-out - horizontal - hinges and locks

Name: Metal faceplate XL³ 4000 - DPX 1600 draw-out - horizontal - hinges and locks
SKU: 021234

LEGRAND

REF. 021234 EAN. 3245060212346

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 1600 draw - out version and automatic transfer switches - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
Metal faceplates for draw - out version - Faceplates with hinges and lockdevices in horizontal position - 24 modules - For 1 DPX³ 1600

Width	600 mm
Height	400 mm
Suitable for enclosure building width	725 mm

Suitable for enclosure building height	2200 mm
Material	Steel
Surface finishing	Powder coating

2 documents

Select all

Workshop Book

Workshop Book: XL³400 and XL³800 pdf (56.11 Mo)

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

2 documents

Select all

Catalogue Technical Page

ex223001_0391.pdf pdf (0.36 Mo)

Catalogue Commercial Page

ex223001_0389.pdf pdf (0.07 Mo)

2 documents

Select all

Agreement

LOVAG-IT 12.017 (0.13 Mo)

Agreement

LOVAG-IT 12.019 (0.59 Mo)
