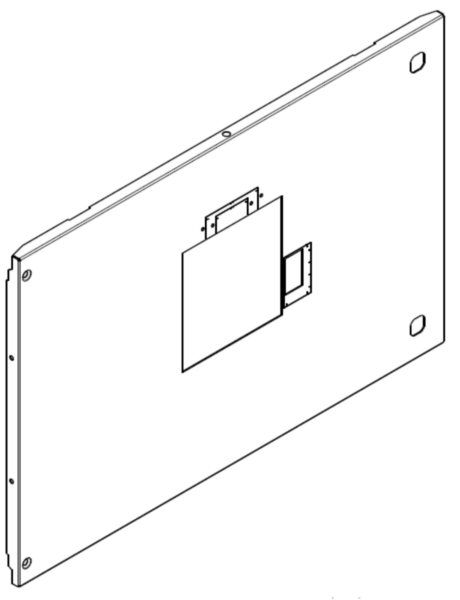

Metal faceplate for XL³ S 4000 enclosures - 1 draw-out device without elcb in vertical position with motor-driven handle

Name: Metal faceplate for XL³ S 4000 enclosures - 1 draw-out device without elcb in vertical position with motor-driven handle
SKU: 021072

LEGRAND

REF. 021072 EAN. 3414970972224

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 plug - in, draw - out version or automatic transfer switches - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
Metal faceplates for draw - out devices - Faceplates with hinges and lockdevices in vertical position with motor - driven handle - For 1 device without elcb

Width	600 mm
Height	400 mm
Suitable for enclosure building width	725 mm
Material	Steel
Surface finishing	Powder coating
Degree of impact strength (IK)	IK07

Operating / setting temperature	-5-40 °C
Storage temperature	-5-40 °C
Colour	Grey
RAL-number	7035
Halogen free	Yes
Label space/information surface	No
