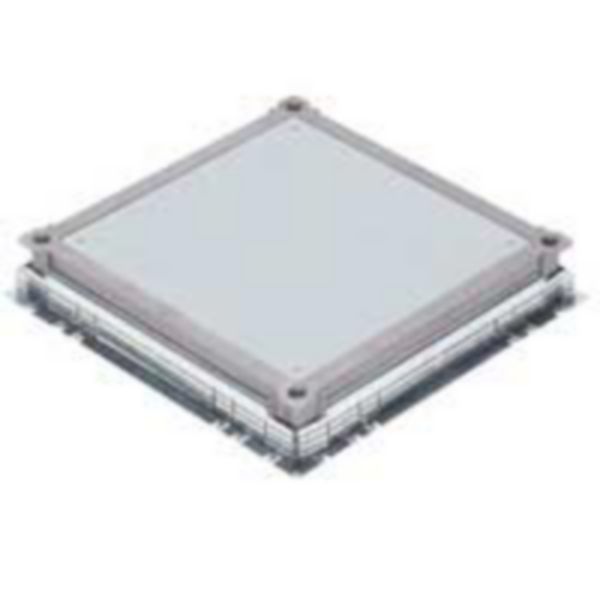

Metal back box for installation of floor boxes and ducts
Mosaic™
LEGRAND
Metal back box for installation of floor boxes and ducts
REF. 089634
EAN.
3245060896348
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
- Height adjustable (its height must be equal to the height of the screed) using 4 screws located in the box corners and a tool adapting to electric drill or screwdriver
- For coating thickness (tile, marble) between 6 and 28 mm
- Back boxes made in galvanised steel (Z275) and Zamak
- Delivered with worksite protection cover to be replaced by adaptor Ref. 0 896 83 or 0 896 84
Recommendation / Restriction
- For installation in concrete floor only - Temperature of use, transport and storage: -5° à +60°
The product's benefits
Installation
- Bendable side walls for junction with different sizes of floor ducts
Avantages
- Allows the derivation of strong or low currents and / or the installation of floor boxes: - reduced height 65 mm - adjustable height from 65 to 105mm
Technical characteristics
| Nominal dimension | 480 mm |
|---|---|
| Min. height finishing layer | 50 mm |
| Levelling range (Min-Max) | 56-140 mm |
| Suitable for subfloor duct countersunk (closed) | Yes |
| Suitable for subfloor duct overhead closed | No |
| Duct height (Min-Max) | 28-48 mm |
| Duct width (Min-Max) | 50-350 mm |
| Built-in opening for floor column | No |
|---|---|
| Built-in opening for built-in unit | Square |
| Material side wall | Steel |
| Suitable for placing of sealing | Yes |
| Decoupling possibility cover from base unit | Yes |
| Bottom plate | Yes |
Documentation
3 documents
Technical Sheet
