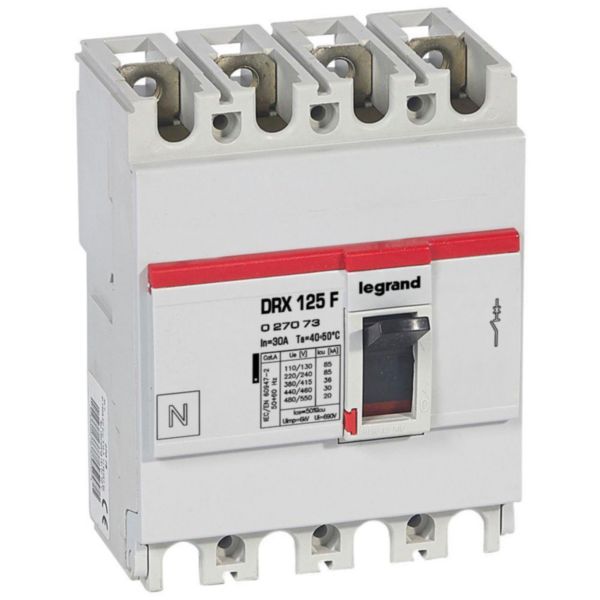

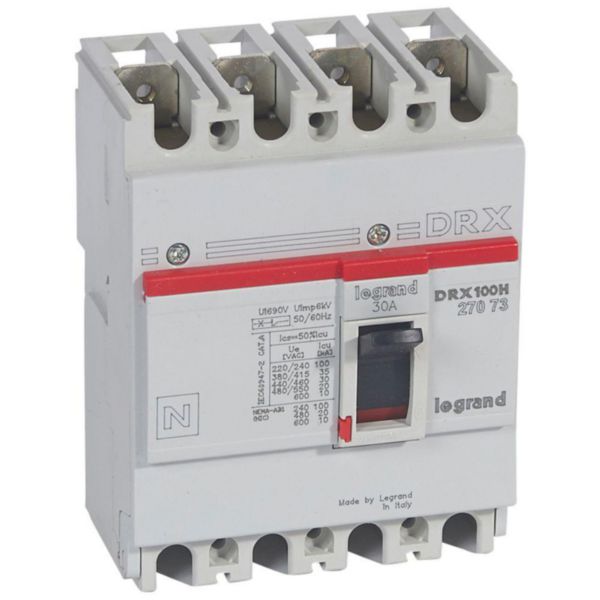

MCCB DRX 125 - thermal magnetic circuit breaker - Icu 35 kA - 415 V~ - IP30 protection - product

Legrand

MCCB DRX 125 - thermal magnetic circuit breaker - Icu 35 kA - 415 V~ - IP30 protection - product

REF. 027073 EAN. 3245060270735

Legrand MCCB - DRX 125: 4P, 35 kA at 415 V~, 30 A, IP30, DIN rail mount, under-voltage release, switched-off indicator. Ideal for protecting transformers and generators.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand MCCB - DRX 125: 4P, 35 kA at 415 V~, 30 A, IP30, DIN rail mount, under-voltage release, switched-off indicator. Ideal for protecting transformers and generators.

Technical characteristics

Rated permanent current Iu 30 A
Rated voltage (Min-Max) 110-550 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA
Overload release current setting (Min-Max) 30-30 A
Adjustment range short-term delayed short-circuit release (Min-Max) 400-400 A
Adjustment range undelayed short-circuit release (Min-Max) 400-400 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting Yes
DIN rail (top hat rail) mounting optional Yes
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as change-over contact 1
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional No
Degree of protection (IP) IP30
