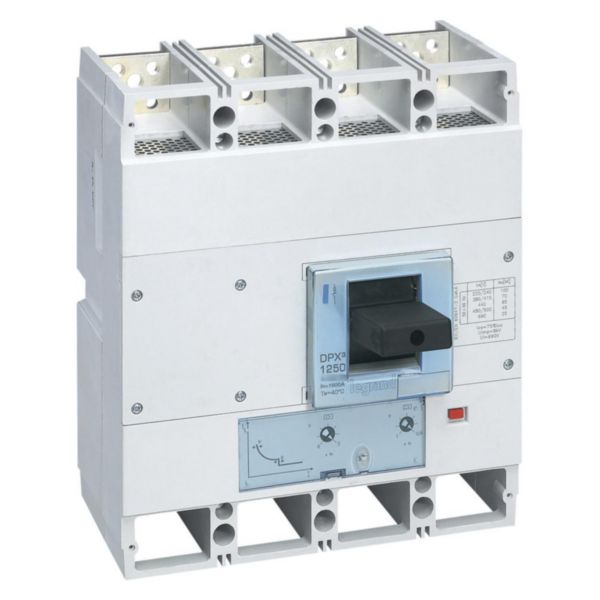

MCCB DPX³ 1600 - TM 4P 500A 70KA - front side connection - screw connection - IP30 protection - product

Legrand

MCCB DPX³ 1600 - TM 4P 500A 70KA - front side connection - screw connection - IP30 protection - product

REF. 422279 EAN. 3414970380456

Legrand MCCB DPX³ 1600, 4-pole, 500A, 70kA breaking capacity, front-side screw connection, toggle control, undervoltage release, switched-off indicator, not DIN rail mountable.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand MCCB DPX³ 1600, 4-pole, 500A, 70kA breaking capacity, front-side screw connection, toggle control, undervoltage release, switched-off indicator, not DIN rail mountable.

Technical characteristics

Rated permanent current Iu 500 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 70 kA
Overload release current setting (Min-Max) 400-500 A
Adjustment range undelayed short-circuit release (Min-Max) 2500-5000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as change-over contact 3
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP30
