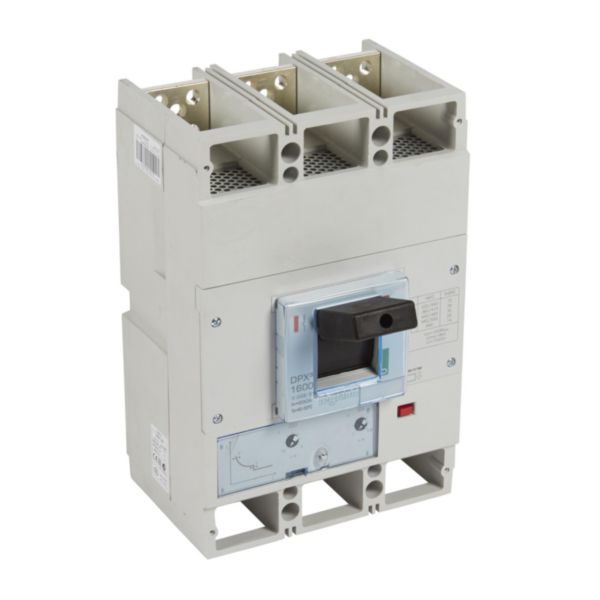

MCCB DPX³ 1600 - TM 3P 500A 50KA - front side screw connection - IP30 protection - toggle control - product

Legrand

MCCB DPX³ 1600 - TM 3P 500A 50KA - front side screw connection - IP30 protection - toggle control - product

REF. 422262 EAN. 3414970380289

Legrand MCCB DPX³ 1600 offers IP30 protection, under-voltage release, and optional motor drive. Ideal for transformer and generator protection, not DIN rail mountable.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand MCCB DPX³ 1600 offers IP30 protection, under-voltage release, and optional motor drive. Ideal for transformer and generator protection, not DIN rail mountable.

Technical characteristics

Rated permanent current Iu 500 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA
Overload release current setting (Min-Max) 400-500 A
Adjustment range undelayed short-circuit release (Min-Max) 2500-5000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as change-over contact 3
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 3
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP30
