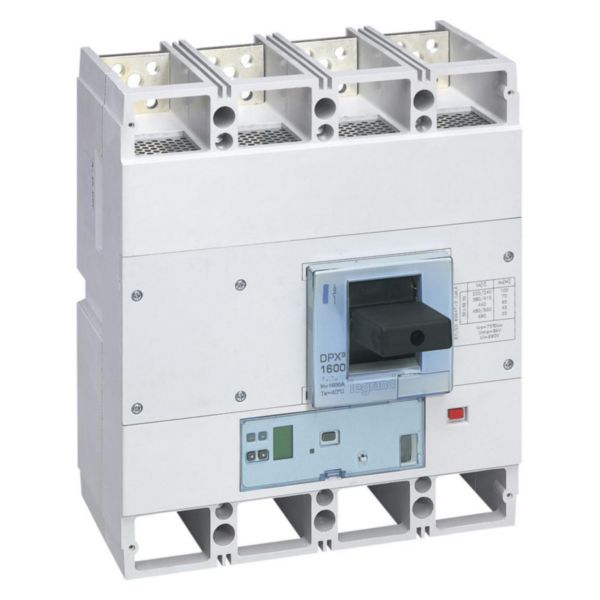

Name: MCCB DPX³ 1600 - S2 electronic release - 4P - Icu 70 kA (400 V~) - In 800 A
SKU: 422330

MCCB DPX³ 1600 - S2 electronic release - 4P - Icu 70 kA (400 V~) - In 800 A

REF. 422330 EAN. 3414970380968

Compare You can only compare 4 products, you must remove 1 to add this one

DPX³ 1600 - S2 electronic release MCCBs from 630 to 1600 A - Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines - Can be fitted with auxiliaries - Can be used with residual current relays - Supplied complete with : - Connection plates for bars - Insulated shields (phase barriers) - Conform to IEC 60947 - 2 - Sealable adjustment - Can be mounted on plate in XL³ cabinets and enclosures
MCCBs electronic release S2 fixed version - Adjustment of Ir, Isd, tr, tsd - Instantaneous protection If = 20 kA - Green indicator lamp - Connector for test unit - Logic and dynamic selectivity Breaking capacity Icu 70 kA (400 V~) - 4P - In : 800 A

Technical characteristics

Rated permanent current Iu	800 A
Rated voltage (Min-Max)	220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	70 kA
Overload release current setting (Min-Max)	320-800 A
Adjustment range short-term delayed short-circuit release (Min-Max)	480-8000 A
Adjustment range undelayed short-circuit release (Min-Max)	15000-15000 A
Device construction	Built-in device fixed built-in technique
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	No
DIN rail (top hat rail) mounting optional	No
Number of auxiliary contacts as change-over contact	3
With switched-off indicator	Yes
With integrated under voltage release	Yes
Number of poles	4

Position of connection for main current circuit	Front side
Type of control element	Wing knob
Complete device with protection unit	Yes
Motor drive integrated	No
Motor drive optional	Yes
Degree of protection (IP)	IP30
Contains Batteries	Yes
Number of batteries (Type 1)	2
IEC code (Type 1)	CR1616
Battery ou Accumulator (Type 1)	Battery (not rechargeable)
Battery Composition (Type 1)	Lithium (battery or accumulator)
Battery Location (Type 1)	Product includes a battery
Regulation Type (Type 1)	P : Portable (Standard format)
Battery weight (g) for Type 1	1.1 g
Number of Single Element (Pack1)	1
