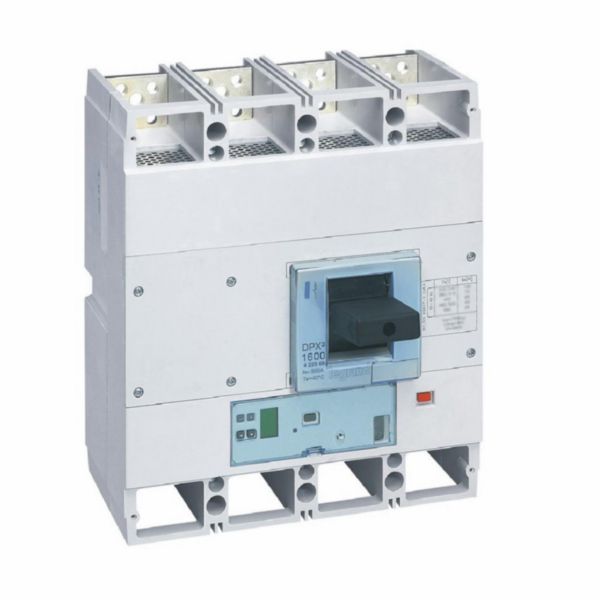

MCCB DPX³ 1600 - S1 4P 500A 70KA - front side screw connection - IP30 protection - toggle control element - product

Legrand

MCCB DPX³ 1600 - S1 4P 500A 70KA - front side screw connection - IP30 protection - toggle control element - product

REF. 422568 EAN. 3414970383341

Legrand MCCB DPX³ 1600 - S1 4P 500A 70KA offers IP30 protection, under-voltage release, and optional motor drive. Ideal for transformer and generator protection. Not DIN rail mountable.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand MCCB DPX³ 1600 - S1 4P 500A 70KA offers IP30 protection, under-voltage release, and optional motor drive. Ideal for transformer and generator protection. Not DIN rail mountable.

Technical characteristics

Rated permanent current Iu 500 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 70 kA
Overload release current setting (Min-Max) 200-500 A
Adjustment range short-term delayed short-circuit release (Min-Max) 300-5000 A
Adjustment range undelayed short-circuit release (Min-Max) 15000-15000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as change-over contact 3
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP30

Documentation

8 documents
Instruction Use
LE08011AA.pdf pdf (0.44 Mo)
Instruction Use
LE07037AB.pdf pdf (0.94 Mo)
Technical Sheet
Technical Guide
Workshop Book
Technical Sheet
Technical Guide
Workshop Book
1 document
3D Autocad
422321.dwg dwg (0.2 Mo)
