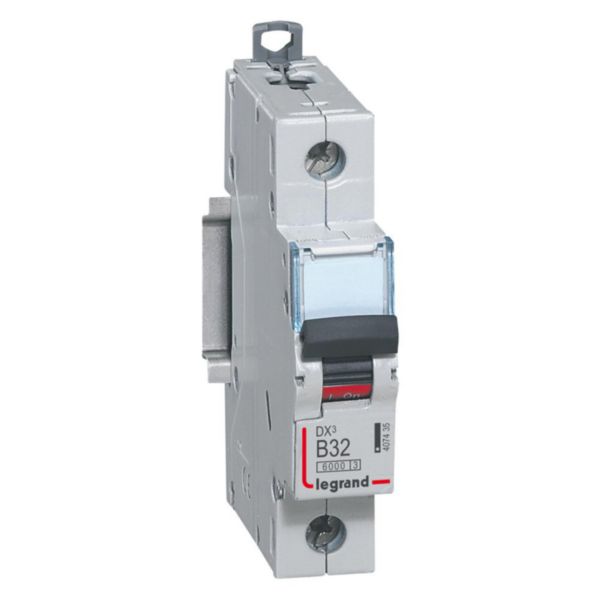

MCB DX3 6000A 1 pole 32A curve B


MCB DX3 6000A 1 pole 32A curve B

REF. 407435 EAN. 3245064074353
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Built-in depth 44 mm
Release characteristic B
Number of poles (total) 1
Number of protected poles 1
Rated current 32 A
Rated voltage 230 V
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6 kA
Voltage type AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 10 kA
Frequency 50-60 Hz
Current limiting class 3
Flush-mounted installation Yes
Concurrently switching neutral conductor No
Pollution degree 2
Additional equipment possible Yes
Width in number of modular spacings 1
Degree of protection (IP) IP20
Ambient temperature during operating -25-70 °C
Connectable conductor cross section multi-wired 1.5-25 mm²
Connectable conductor cross section solid-core 1.5-35 mm²
Explosion-proof No
Width 17.8 mm
Height 94.8 mm
Depth 77.8 mm
Degree of impact strength (IK) IK02
Storage temperature -40-70 °C
Electric supplying direction By the top or bottom
Colour Grey
RAL-number 7035
Halogen free TRUE
Connection type Screwed terminal
Label space/information surface TRUE
Mounting method DIN rail


2 documents
Technical Sheet
F01591FR-05.pdf pdf (2.19 Mo)
Technical Sheet
F01591EN-04.pdf pdf (2.21 Mo)
1 document
3D Autocad
407654.dwg dwg (0.12 Mo)
6 documents
LGRP-00828-V01.01-EN.pdf pdf (1.02 Mo)
