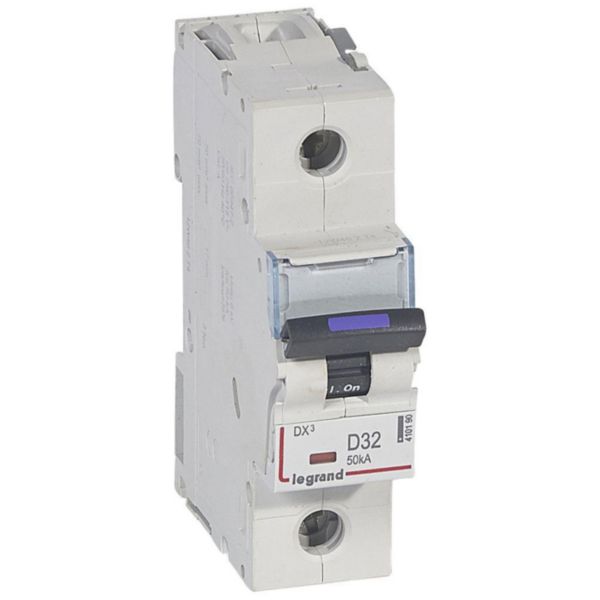

Name: MCB DX3 1 pole 32A curve D
SKU: 410190

MCB DX3 1 pole 32A curve D

DX³ LEGRAND

MCB DX3 1 pole 32A curve D

REF. 410190 EAN. 3245064101905

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity 50kA according to IEC 60947 - 2. Tripping threshold in case of short - circuit between 320A and 448A (D curve between 10 In and 14 In)
To be supplied by copper cable (top side or bottom side) .
Protected against solid bodies larger than 12,5mm ("fingerproof") : IP20 according to IEC/EN 60529 standard.
Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and accessories. Can be connected to aluminium cable with terminal accessory n° 4 063 10.
This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Built-in depth	47 mm
Release characteristic	D
Number of poles (total)	1
Number of protected poles	1
Rated current	32 A
Rated voltage	230 V
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	6 kV
Voltage type	AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	50 kA
Frequency	50-60 Hz
Flush-mounted installation	Yes
Concurrently switching neutral conductor	No
Pollution degree	3

Additional equipment possible	Yes
Width in number of modular spacings	1.5
Degree of protection (IP)	IP20
Ambient temperature during operating	-25-70 °C
Connectable conductor cross section multi-wired	1.5-35 mm²
Connectable conductor cross section solid-core	1.5-50 mm²
Explosion-proof	No
Width	26.7 mm
Height	127.5 mm
Depth	79.2 mm
Degree of impact strength (IK)	IK02
Storage temperature	-40-70 °C
Nominal voltage	210-250 V
