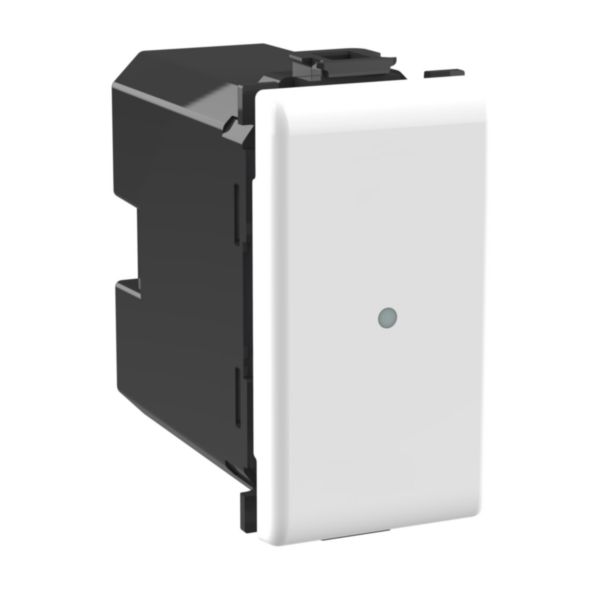

Matix - wireless light switch 1 module - 2400MHz Radio Frequency - 185m Range - IP40 Protection

Name: Matix - wireless light switch 1 module - 2400MHz Radio Frequency - 185m Range - IP40 Protection
SKU: AM4003CWI

Matix Bticino

REF. AM4003CWI EAN. 8005543678817

Compare You can only compare 4 products, you must remove 1 to add this one

Quick and easy pairing with wired products, including connected switches with dimmer option, connected power outlets, micromodules, or cable outlets, via Zigbee protocol and smartphone app programming.
LED indicator provides clear status feedback and low battery warning for reliable operation.
Supplied with a replaceable CR2032 lithium battery, offering up to 8 years of service life and easy maintenance.
Flush-mounted design with compact dimensions (23.5x44x44.5mm), IP40 protection, and IK04 impact strength for robust installation.
White finish (RAL 9003), halogen free, ensuring compatibility with modern electrical installations and aesthetic integration.

To add your wireless light switch to your connected installation, you first need to purchase and install a Matix with Netatmo gateway, as well as one or more Matix with Netatmo connected switches, power outlets or lighting µm modules

Radio frequency	2400 MHz
Rolling code system	Yes
Code length (Bit)	128
Range	185 m
Number of commands	1
With manual radio transmitter	Yes
Flush-mounted radio transmitter	Yes
Surface mounted radio transmitter	No
With radio coding device	Yes
Degree of protection (IP)	IP40
Keyboard protection cover	No
Current supply	Battery
Width	23.5 mm
Height	44 mm
Depth	44.5 mm
Built-in depth	36 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Standby consumption	3.5 mA
Mandatory neutral	No
Stress test conformity (1000V)	No
Colour	White
RAL-number	9003

Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Contains Batteries and/or Accumulator	Yes
IEC code (Pack1)	CR2032
Battery ou Accumulator (Pack1)	Battery (not rechargeable)
Element Composition (Pack1)	Lithium (battery or accumulator)
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	3 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	Google Play Store , App Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Lighting management
Application name	Home + Control
Programming way	Smartphone apps

2 documents

Select all

Instruction Use

LE12515AA.pdf pdf (1.38 Mo)

Technical Sheet

IDP001544_02-EN.pdf pdf (0.36 Mo)

2 documents

Select all

Agreement

Decl. UE RED-A 4395 A (0.43 Mo)

Agreement

OC / CB-DE 2-036676-M1/A2 (0.75 Mo)
