Manipulator for call, lighting control and roller shutters

LEGRAND

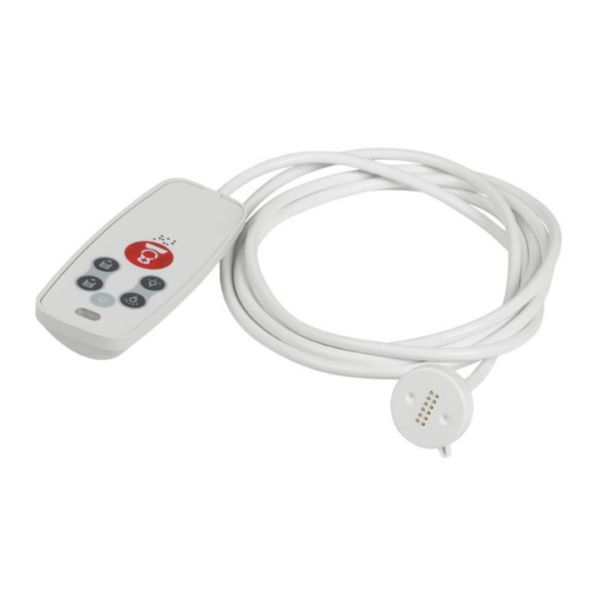

Manipulator for call, lighting control and roller shutters

REF. 078284 EAN. 3414971060685
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • IP 67 waterproof manipulator : ergonomics for easy gripping
  • 1 call button and a red call return indicator, visible at night thanks to 2 bright LEDs
  • 1 button for controlling the reading light 1 button for ambient lighting control 2 buttons for controlling roller shutters 1 free function key (example : controlled socket)
  • Antimicrobial white
  • Magnetic connection between manipulator and socket: ejectability in all directions with breakout torque designed to avoid material deterioration
Recommendation / Restriction
  • Equipped with a 2.5 m cord. To be associated with the socket ref. 0 782 45 or 0 782 47 and 0 782 47L

The product's benefits

Installation
  • Manipulator for call, lighting control and roller shutters IP 67 waterproof manipulator: ergonomics for easy gripping 1 call button and a red call return indicator visible at night thanks to 2 bright LEDs 1 button for controlling the reading light 1 button for ambient lighting control 2 buttons for controlling roller shutters 1 free function key (example: controlled socket) Equipped with a 2.5 m cord To be associated with the socket ref. 0 782 45 or 0 782 47 and 0 782 47L Contains silver ions which limit the development of bacteria on the surface
Usage
  • Contains silver ions which limit the development of bacteria on the surface

Technical characteristics

With connection cord and plug Yes
Colour White
Colour button Red
Height 25.6 mm
Width 48 mm
Depth 121.9 mm

Documentation

1 document
Technical Guide
LE04498AK_FR.pdf pdf (205.67 Mo)
1 document
Catalogue Commercial Page
ex223001_1209.pdf pdf (0.11 Mo)
1 document
PEP
LGRP-00587-V02.01-EN.pdf pdf (0.58 Mo)
