Manipulator for call, lighting control and roller shutters

Mosaic LEGRAND

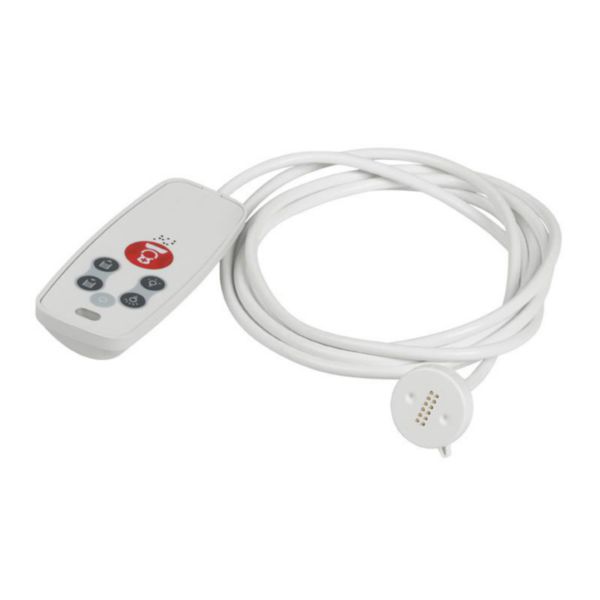

Manipulator for call, lighting control and roller shutters

REF. 078284 EAN. 3414971060685
Handset for calling a nurse via the door unit for BUS SCS nurse call system, with information repeated on the door unit and nurse station console. IP67 waterproof antimicrobial white body with ergonomic grip, magnetic connection
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Handset for calling a nurse via the door unit for BUS SCS nurse call system, with information repeated on the door unit and nurse station console. IP67 waterproof antimicrobial white body with ergonomic grip, magnetic connection

Product characteristics
  • IP 67 waterproof manipulator : ergonomics for easy gripping
  • 1 call button and a red call return indicator, visible at night thanks to 2 bright LEDs
  • 1 button for controlling the reading light1 button for ambient lighting control2 buttons for controlling roller shutters1 free function key (example : controlled socket)
  • Antimicrobial white
  • Magnetic connection between manipulator and socket: ejectability in all directions with breakout torque designed to avoid material deterioration
Recommendation / Restriction
  • Equipped with a 2.5m cord. To be associated with the socket ref. 0 782 45 or 0 782 47 and 0 782 47L

The product's benefits

Installation
  • Manipulator for call, lighting control and roller shuttersIP 67 waterproof manipulator:ergonomics for easy gripping1 call button and a red call return indicatorvisible at night thanks to 2 bright LEDs1 button for controlling the reading light1 button for ambient lighting control2 buttons for controlling roller shutters1 free function key (example: controlled socket)Equipped with a 2.5m cordTo be associated with the socket ref. 0 782 45 or 0 782 47 and 0 782 47LContains silver ions which limit the development of bacteria on the surface
Usage
  • Contains silver ions which limit the development of bacteria on the surface

Technical characteristics

With connection cord and plug Yes
Colour White
Colour button Red
Height 25.6 mm
Width 48 mm
Depth 121.9 mm

Documentation

2 documents
Technical Guide
LE04498AL_FR.pdf pdf (127.23 Mo)
Technical Guide
LE04498AL_EN.pdf pdf (112.86 Mo)
3 documents
Product Environmental Profile (PEP)
LGRP-00587-V02.01-EN.pdf pdf (0.58 Mo)
RoHS DIRECTIVE
REACH DECLARATION
1 document
Catalogue Commercial Page
ex223001_1209.pdf pdf (0.11 Mo)
