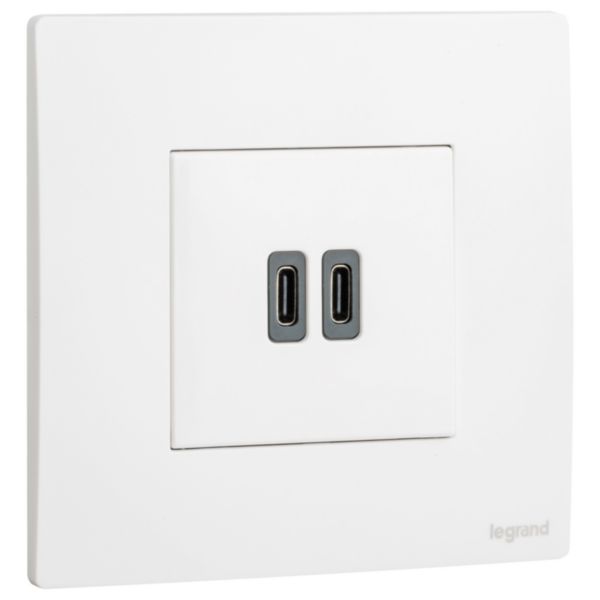

Mallia Senses - USB charger 2 modules 30W C+C power delivery - Matt White

Name: Mallia Senses - USB charger 2 modules 30W C+C power delivery - Matt White
SKU: 281210MW

Mallia Senses LEGRAND

REF. 281210MW EAN. 3414972679596

Dual USB type C charger: fast charging suitable for laptops, tablets and smartphones

Compare You can only compare 4 products, you must remove 1 to add this one

Dual USB type C charger: fast charging suitable for laptops, tablets and smartphones

Number of modules (module system)	2
Model	Other
Number of ports USB-A	0
Number of ports USB-C	2
Operating voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Output voltage (Min-Max)	5-20 V
Power consumption	0.063 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	White
RAL-number	9003
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Operating / setting temperature (Min-Max)	5-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	30
Supply current (Min-Max)	1-1 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²
