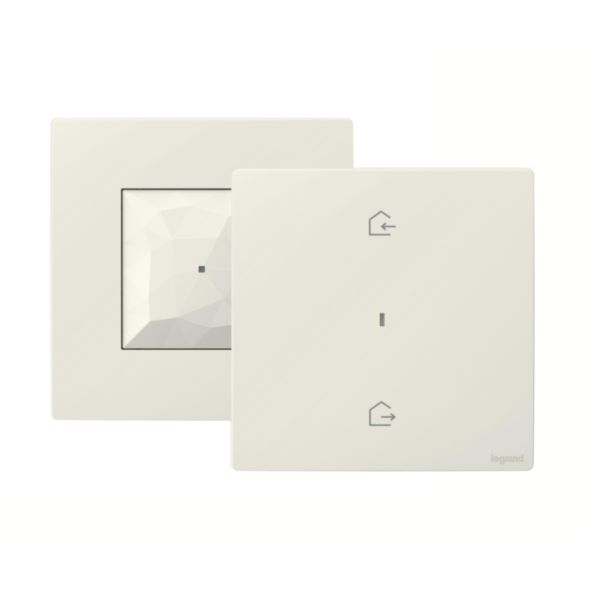

Mallia Senses - Connected starter pack 1gateway +1wireless home/away switch - Matt White

Mallia Senses LEGRAND

Mallia Senses - Connected starter pack 1gateway +1wireless home/away switch - Matt White

REF. 281501MW EAN. 3414972220460

Starter pack for a connected installation allows you to control your lighting, roller shutters & electrical appliances remotely via the Home + Control app or by using your voice and to track your appliances consumption from your smartphone

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Starter pack for a connected installation allows you to control your lighting, roller shutters & electrical appliances remotely via the Home + Control app or by using your voice and to track your appliances consumption from your smartphone

Product characteristics

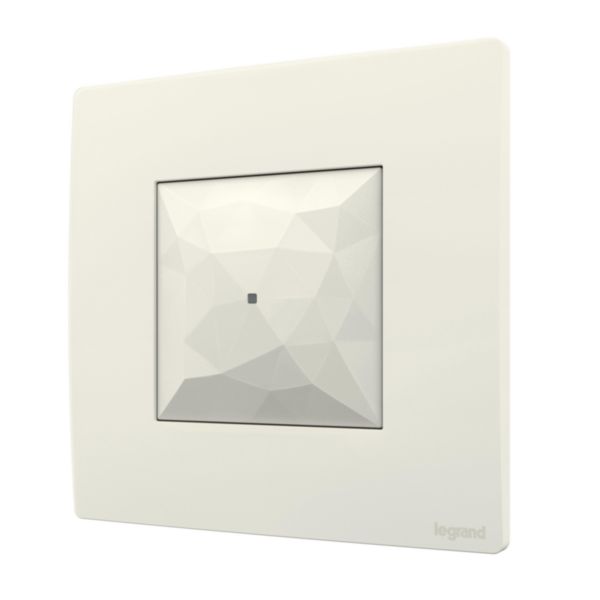

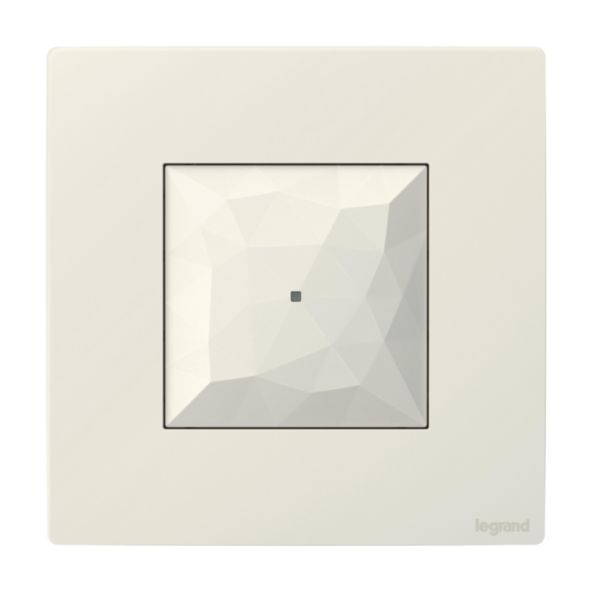

  • Gateway power outlet : Measures instantaneous and total electricity consumption. Protects against overloads, breaking at 16 A maximum. Compatible with any electrical appliance or large household appliance. LED indicator with locator function which can be activated in the app. Wi - Fi 2.4 GHz 802.11 b/g/n

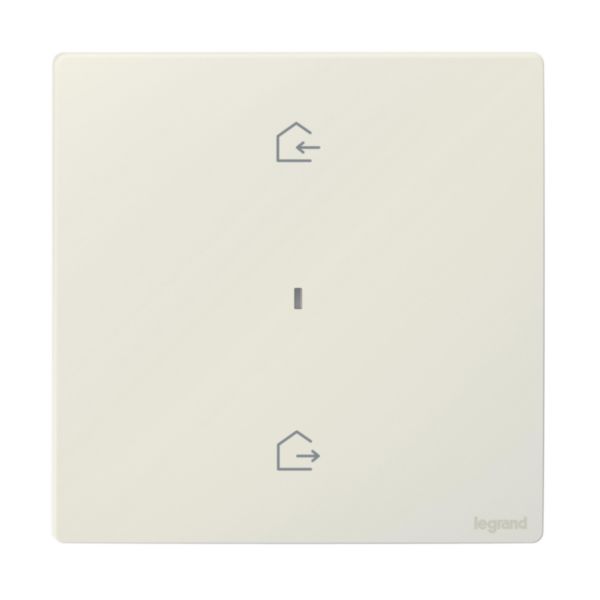

  • Home/Away wireless master switch : Predefined Home/Away scenarios which can be customised from the Home + Control app. Supplied with a replaceable battery with an 8 - year life. LED indicator with low battery warning
  • The installation of the gateway is easy, replacing an existing standard outlet in 1 gang box of 35mm depth.
  • The wireless remote master switch home/away is provided with a 8 years lifetime battery. This battery can be replaced easily. A low battery in-app alert is available.
  • Matt White
Recommendation / Restriction
  • A Wi-Fi connection viayour router is required.

The product's benefits

Installation
  • The Mallia Senses with Netatmo gateway power outlet is easily installed in place of an existing standard power outlet and needs a standard-depthflush-mounting box (35 mm). Screw fixing
Usage
  • Voice control of your lights and electrical appliances via a voice assistant
Avantages
  • The installation of a Mallia Senses with Netatmo product is identical as a traditionnal product. It does not need any additional wire and is placed in a standard one gang box of 35mm depth
  • Simply control your house with the Mallia Senses with Netatmo products by voice control ( via Apple Siri, Google Home and Amazon Alexa). Simply saying "I am leaving" or "Good night" to your smartphone, you can swith off both selected lights, appliances and close all shutters
  • When installed on the wall, the wireless remote master switch has the same aesthetic and thickness as all the Mallia Senses with Netatmo switches

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Model Multiple interface
Mounting method Flush-mounted
Max. number of devices per channel 100
Demounting protection Yes
With LED indication No
Updateable Yes
Operating voltage 230-250 V
Voltage type AC
Protocol TCP/IP
Provider dependent No
Visualization Yes
Web-Server No
Radio interface Yes
IR interface No
Degree of protection (IP) IP40
degree of impact strength (IK) IK04
Operating / setting temperature 5-45 °C
Storage temperature 0-45 °C
Terminal marking indication Yes
Type of load Not applicable
Halogen free Yes
Connection type Push-in clamp , Cable
Terminals capacity 0.75-2.5 mm²
Label space/information surface No
Fitted with USB plug No
Contains Batteries and/or Accumulator Yes
Addressable No
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Wifi network , Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Connected devices interface
Application name Home + Control
Programming way Smartphone apps

Documentation

2 documents
Instruction Use
LE13198AA.pdf pdf (18.07 Mo)
Technical Sheet
F03690EN-00.pdf pdf (0.23 Mo)
1 document
Catalogue Commercial Page
ex223001_0706.pdf pdf (0.07 Mo)
