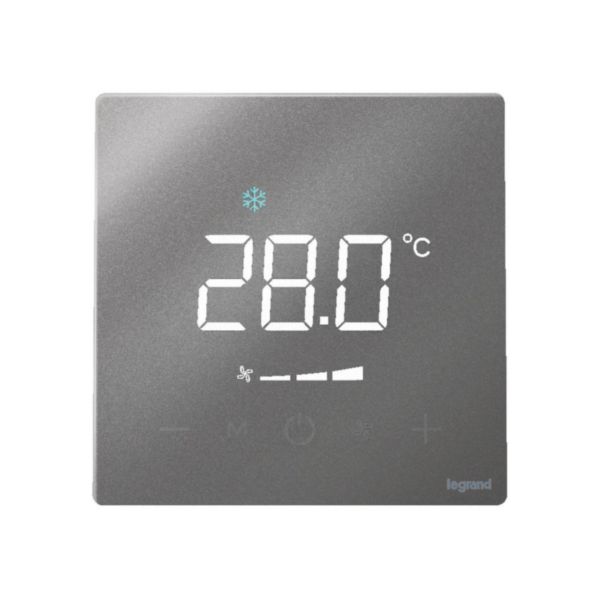

Mallia Senses - 1 gang room temperature control unit - Dark Silver

Mallia Senses LEGRAND

Mallia Senses - 1 gang room temperature control unit - Dark Silver

REF. 281023DS EAN. 3414972085250

Allows to control the temperature level inside room.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to control the temperature level inside room.

Product characteristics
  • 230V~ 50/60Hz. Control temperature range : 5 - 35°C. Load capacity 1A
  • MALLIA SENSES is sold as a complete set under one cat number
  • Screw type terminals for a secured & enhanced contacts
  • Marked terminals for easy identification
  • Dark silver finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate clipping system
Usage
  • Easy and intuitive temperature management.
Avantages
  • Equivalent aesthetic as all other functions
  • Technicity and Robustness of the support frame
  • Thin and modern design for a perfect decoration integration

Technical characteristics

Model Other
Type of power supply 230 V AC
Connection Other
With receiver No
Measuring range (Min-Max) -5-35 °C
External sensor No
Thermal feedback None
Control characteristic Other
Suitable for heating No
Suitable for cooling Yes
Number of cooler outputs 1
Adjustable differential Yes
Temperature readable Yes
With sound indicator No
Sensor/feeler type Resistance sensor
Mounting method Flush-mounted
With display Yes
Operation Button
Concealed operation No
With tap water circuit No
Contact type Change-over contact (NO/NC)
Max. contact voltage 240 V
Max. contact load 2 A
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
Explosion-proof No
Colour Silver
Height 39.3 mm
Width 86 mm
Depth 28.5 mm
Standby power consumption (solstandby) 1 W
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -20-60 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Contains Batteries and/or Accumulator No

Documentation

2 documents
Technical Sheet
F03256EN-00.pdf pdf (0.52 Mo)
Instruction Use
LE12426AA.pdf pdf (3.61 Mo)
1 document
Catalogue Commercial Page
ex223001_0702.pdf pdf (0.24 Mo)
