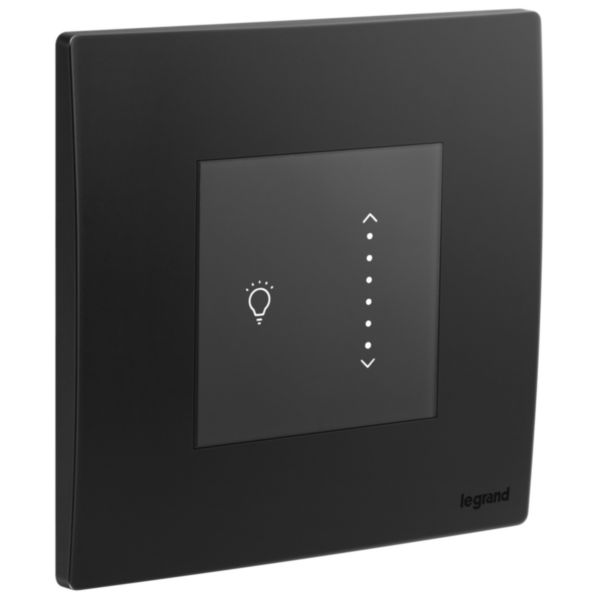

Mallia Senses - 1 gang Led sliding touch dimmer - Matt Black

Mallia Senses LEGRAND

Mallia Senses - 1 gang Led sliding touch dimmer - Matt Black

REF. 281286MB EAN. 3414972067058

Sliding your finger on the dimmer allows to increase or decrease lighting intensity and dim from an intimate to a bright atmosphere.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Sliding your finger on the dimmer allows to increase or decrease lighting intensity and dim from an intimate to a bright atmosphere.

Product characteristics
  • 5 - 300W incandescent/ 5 - 75W led, 100 - 240V
  • MALLIA SENSES is sold as a complete set under one cat number
  • Screw type terminals for enhanced contacts
  • Marked terminals for easy identification
  • Matt black finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate clipping system
Usage
  • No accessible electrical contact under the rockers
Avantages
  • A sensitive touch movement
  • A completely silent switch. Discretion with style
  • Thin and modern design for a perfect decoration integration

Technical characteristics

Assembly arrangement Basic element with adaptor plate
Method of operation Touch control button
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer Yes
Type of load Universal and LED Retrofit
Substation input No
Light value memory Yes
Applicable with button No
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage (Min-Max) 240-240 V
Frequency (Min-Max) 50-60 Hz
Control voltage (Min-Max) 100-240 V
Nominal power resistive load (Min-Max) 5-300 W
Nominal power inductive load (Min-Max) 5-300 VA
Nominal power capacitive load (Min-Max) 5-75 VA
Max. switching power LED 200 W
Connection type Screwed terminal
Cable section (Min-Max) 1-4 mm²
Device width 86 mm
Device height 86 mm
Device depth 41.35 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 33.4 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Antimicrobial treatment No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
