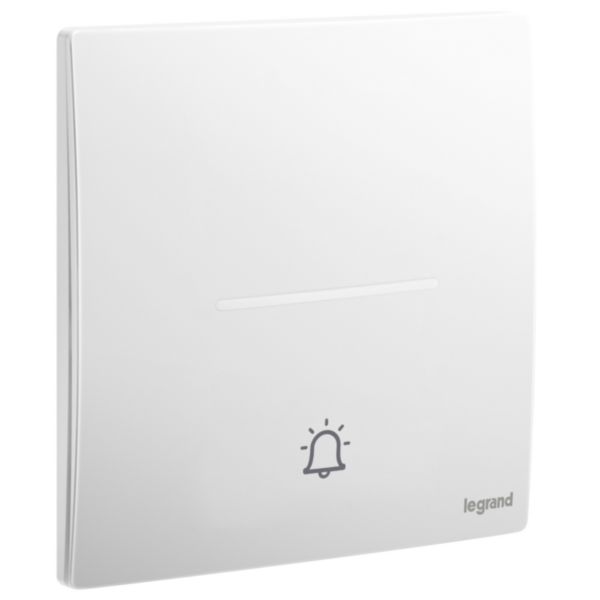

Mallia Senses - 1 gang Do Not Disturb and Make Up my Room and bell push-button - Matt White

Mallia Senses LEGRAND

Mallia Senses - 1 gang Do Not Disturb and Make Up my Room and bell push-button - Matt White

REF. 281045MW EAN. 3414972070683

Door bell and indicator (with light colors) to be installed in the corridor: shows the presence of a guest in a room and his/her needs.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Door bell and indicator (with light colors) to be installed in the corridor: shows the presence of a guest in a room and his/her needs.

Product characteristics
  • 6A, 250V
  • MALLIA SENSES is sold as a complete set under one cat number
  • Screw type terminals for enhanced contacts
  • Marked terminals for easy identification
  • Matt white finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Homogeneous hotel offer
Avantages
  • A definite motion with a subtle touch on the rocker
  • Technicity and Robustness of the support frame
  • Thin and modern design for a perfect decoration integration

Technical characteristics

Assembly arrangement Basic element with adaptor plate
Model Single push button
Method of operation Push button
Contactless type Yes
Number of rockers 1
Number of modules (module system) 2
Nominal voltage 240 V
Rated current 3 A
With lighting Yes
With light source No
Monitoring contact No
Connection type Screwed terminal
Mounting method Flush-mounted
Type of fastening Screw mounting
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface No
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 86 mm
Device depth 39.7 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 30 mm
Operating / setting temperature -20-70 °C
Storage temperature -5-35 °C
Voltage type AC
Frequency 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section 1-4 mm²

Documentation

2 documents
Instruction Use
LE12392AA.pdf pdf (0.86 Mo)
Technical Sheet
F03226EN-00.pdf pdf (0.51 Mo)
1 document
Catalogue Commercial Page
ex223001_0701.pdf pdf (0.08 Mo)
