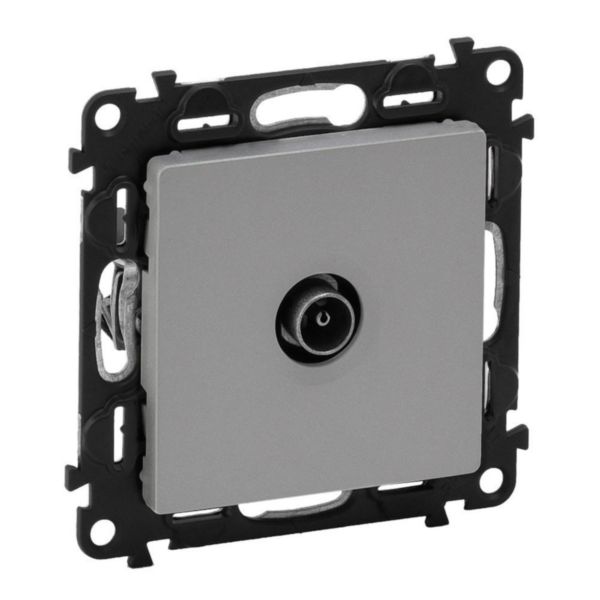

Male TV star socket Valena Life - attenuation 1 dB - with cover plate -aluminium

Name: Male TV star socket Valena Life - attenuation 1 dB - with cover plate -aluminium
SKU: 753351

Valena Life Legrand

REF. 753351 EAN. 3414970451491

Compare You can only compare 4 products, you must remove 1 to add this one

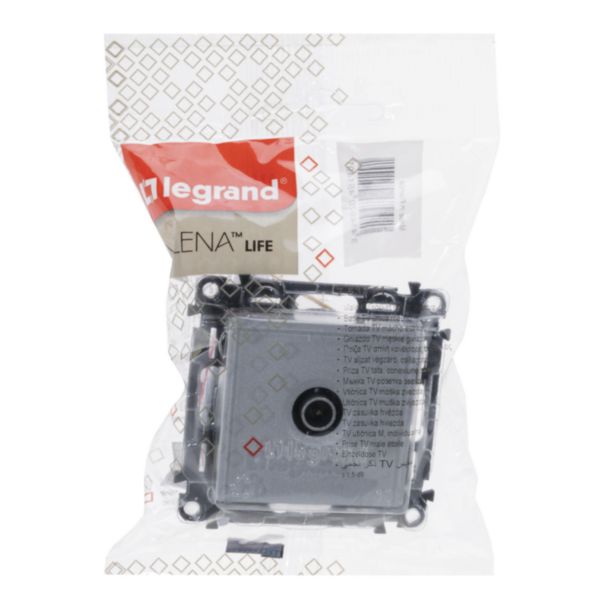

Valena™ Life - TV sockets with cover plate- Valena In’Matic mechanisms supplied with cover plates and support frames- To be equipped with plates- Supplied with mounted dust protection transparent shield- Flowpack packaging: robust protection to ensure optimum operation
Star architecture TV sockets- For DVBT, Cablecast and satellite installation UHD TV compatible- Class A shielded star socket LTE Ready (4G protected)- Recommended coaxial cable: 17 VATC- Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch)- Visual check of the connection- Meet EN 50083-4 and EN 50083-2 European directive- TV male connector (Ø9.5 mm); 0-862 MHz- R female connector (Ø9.5 mm): 87.5 - 108 MHz- SAT "F" type connector: 950-2400 MHzMale TV sockets- Low attenuation: 1 dB - Aluminium

Model	End socket
Type of socket outlet	TV
DAB+	No
Mounting method	Flush-mounted
Tap loss at 860 MHz	1.5 dB
Tap loss at 2150 MHz	1.5 dB
Number of outlets	1
Suitable for cable modem	No
Suitable for remote power supply	Yes
Colour	Aluminium
Surface protection	Lacquered
Surface finishing	Matt

Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
degree of impact strength (IK)	IK04
Device width	74.6 mm
Device height	74.6 mm
Device depth	27.2 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	-25-70 °C

3 documents

Select all

Technical Sheet

F02110FR-01.pdf pdf (0.49 Mo)

Technical Sheet

F02110EN-01.pdf pdf (0.48 Mo)

Instruction Use

LE07455CC.pdf pdf (5.4 Mo)
