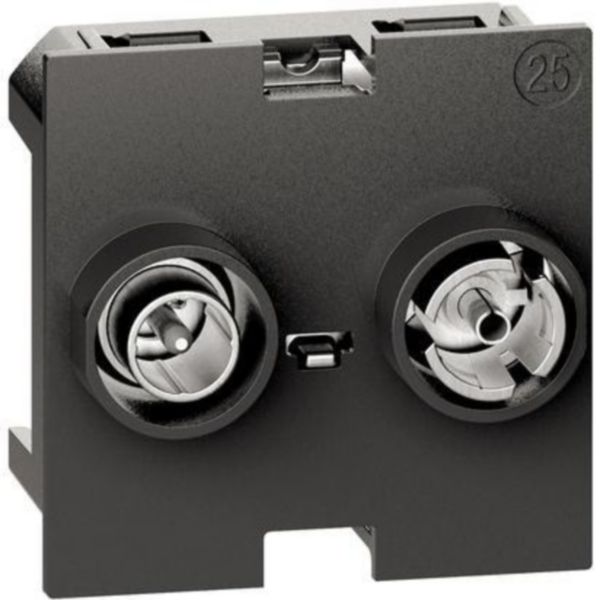

Living Now - TV-RD socket for cable operator Double coaxial shunted socket for TV and FM-LMC reception-9,5mm-Belgium 2modules

Living Now BTICINO

Living Now - TV-RD socket for cable operator Double coaxial shunted socket for TV and FM-LMC reception-9,5mm-Belgium 2modules

REF. BT-K4211M2C EAN. 8005543644188
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Optimized cable tightness
  • The device must be completed with the type K25M2 cover
  • 1.5 Db
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Shielded connection terminals with captive screws, 2 modules
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • This connector is designed for intuitive insertion of the cable. The connection to the terminal board is quick and easy. Finally, a good vision on the connection allows you tobe sure if the cable is tightened.
Usage
  • Optimized outlet for new UHD or 4K TVs: designed for optimal signal reception.
Avantages
  • Certified Class A shield: protects against interference caused by new signals generated by mobile phones (3G, 4G, 5G), which can cause pixels, picture or sound disturbances
  • It is coordinated with the L.NOW aesthetic

Technical characteristics

Model End socket
Type of socket outlet Other
DAB+ No
Mounting method Module frame
Number of modules (module system) 2
Assembly arrangement Basic element
Suitable for cable modem No
TV frequency band 5-862 MHz
Suitable for remote power supply No
Radio frequency band 87.5-108 MHz
SAT frequency band 950-2400 MHz
Type of fastening Snap mounting (engagement)
Colour Black
RAL-number (similar) 7015
Surface protection Untreated
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 37 mm
Min. depth of built-in installation box 37.5 mm
Built-in depth 27.5 mm
Operating / setting temperature -5-35 °C
Storage temperature -10-70 °C
Terminal marking indication No
