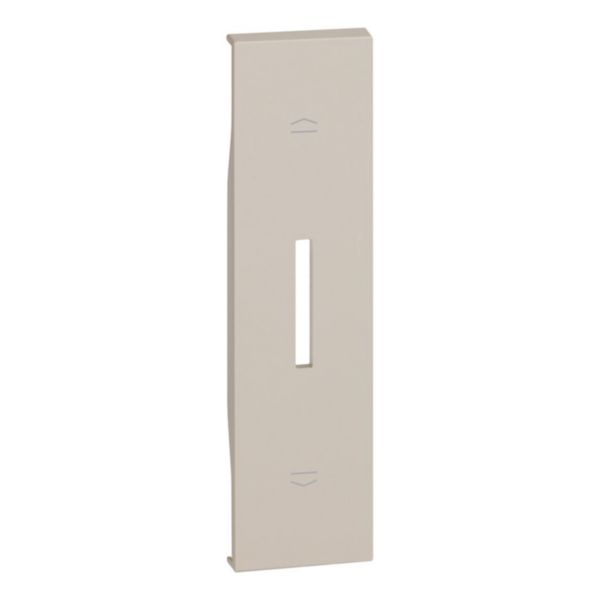

Living Now - shutter switch cover, 1 module, sand

Living Now BTICINO

Living Now - shutter switch cover, 1 module, sand

REF. BT-KM06 EAN. 8005543612361
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Sand technopolymer cover with satin finish and silky feel.
  • The cover is equipped with a self - centering system (self - centering System) that allows the plate to be attached while maintaining a perfect flatness of the switch
  • The space in the center of the cover has been designed to accommodate the reset command of the switch.
  • 1 module, technopolymer, satin sand
  • Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendation / Restriction
  • It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

The product's benefits

Installation
  • Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system
Usage
  • Planar Aesthetic and increased ergonomics thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface
Avantages
  • The cover is equipped with a self-centering system that allows the plate to be attached while maintaining a perfect flatness of the switch
  • It is coordinated with the L.NOW aesthetic
  • You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device

Technical characteristics

Model Central cover plate
Imprint/indication Other
Utilization Switch/dimmer
Suitable for touch sensor connector for bus system No
Type of fastening Engage (snap)
Monitoring window/light outlet Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour Beige
RAL-number (similar) 1015
With label area No
With exchangeable lens/symbol Yes
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK00
Width 22 mm
Height 86 mm
Depth 7 mm
Operating / setting temperature -5-50 °C
Storage temperature -10-70 °C

Documentation

1 document
Technical Sheet
IDP000277_03-EN.pdf pdf (1.32 Mo)
2 documents
BIM Data
BIM Data
1 document
Agreement
AENOR-030/002589 (0.29 Mo)
