Living Now - passive IR switch 2 wires 2 modules

Living Now BTICINO

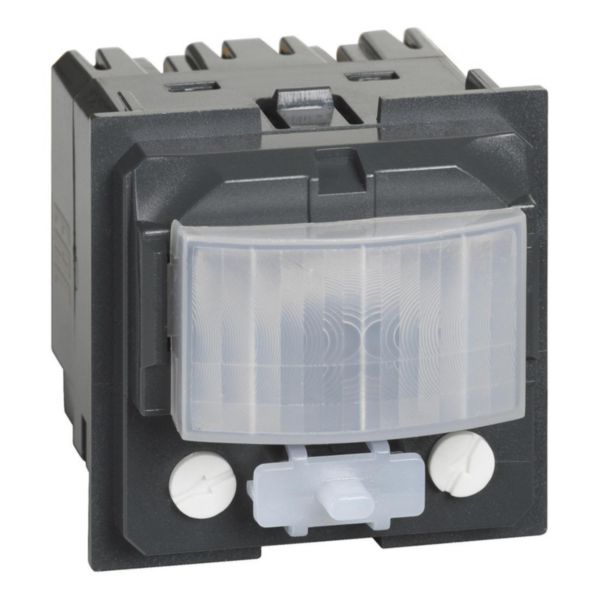

Living Now - passive IR switch 2 wires 2 modules

REF. BT-K4430 EAN. 8005543612538
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Adjustable brightness threshold for automatic light release : the light does not switch on when the natural lighting is sufficient

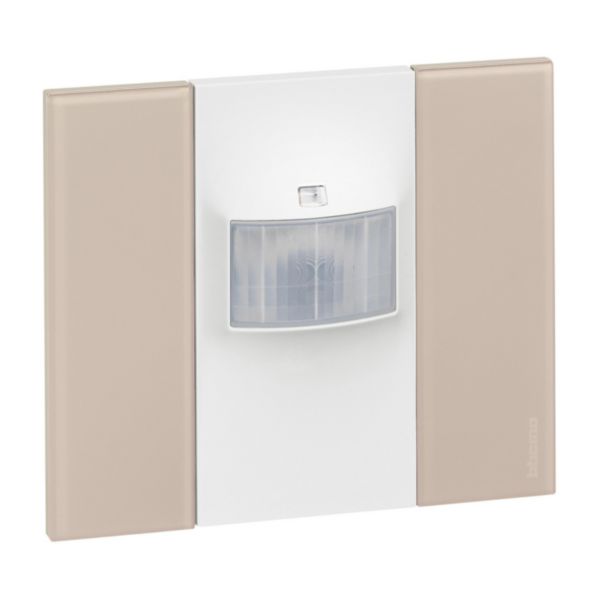

  • The device must be completed with the type 17SL cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Used to control dimmable LED loads, dimmable FCL, very low voltage halogen (TBT), 230V halogen and incandescent. Powered to 100-230 Va.c.
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Possibility to install up to 3 devices in parallel.No need to place the neutral cable.
Usage
  • Adjustable light switch-off: from 10 seconds to 10 minutes.Possibility to manage the permanent switching on and off in manual mode through a selector operated by the cover.
Avantages
  • It is coordinated with the L.NOW aesthetic
  • Suitable for all LED light loads included

Technical characteristics

Model Movement sensor
Movement sensor/presence detector technology Passive infrared
Constant light control Yes
HVAC-control No
Forced switch on No
Forced switch off No
Animal zone No
Creep-under protection Yes
Background monitoring No
Networkable No
Scan angle 120 °
Optimum mounting height 1.2 m
Staircase light controller Yes
Bridging switch No
Max. reach sideways 6 m
Max. presence range 40 m²
Max. reach frontally 8 m
Diameter reach on floor 8 m
Suitable for wireless transmission No
Remote operation No
Supplied remote control No
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
With signal unit No
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Ceiling built-in mounting without installation box No
Suitable for wall mounting Yes
Connection type Insulation displacement connector
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour Black
RAL-number (similar) 7015
Transparent No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Nominal voltage (Min-Max) 100-240 V
Min. switch-on time 10 s
Max. duty cycle 10 min
Detection angle horizontal (Min-Max) 30-120 °
Response value luminosity (Min-Max) 5-1275 lx
Max. switching power 250 W
Max. switching power LED 100 W
Suitable for C-load No
Number of switching zones 1
Max. starting current 1 A
Min. starting current 0.02 A
Substation input No
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) 5-40 °C
Width 44 mm
Height 51 mm
Depth 47 mm
Min. depth of built-in installation box 50 mm
With connection cable No
Connection cable length 0 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Compatible with Casambi No
IFTTT support available No
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) -10-70 °C
Mandatory neutral Yes
Terminal marking indication No
Terminals capacity (Min-Max) 0.8-1.5 mm²
Cable nature for connection Flexible
Label space/information surface No
Entry membrane gland type Flexible to cut
Auto switch No
