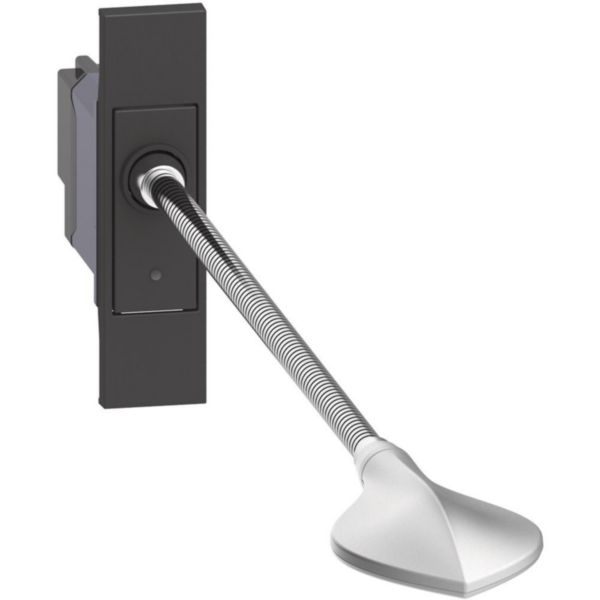

Living Now - LED Reading lamp dimmable, 230V, 1 module, Black

Living Now BTICINO

Living Now - LED Reading lamp dimmable, 230V, 1 module, Black

REF. BT-KG4362 EAN. 8005543653586
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Led, Dimmable reading lamp. Consumption 3W - Luminous Flux 110 lumens (equivalent to 15W incandescent)
  • Cover embedded in the packaging
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • 230 Va.c - Consumption 3W - Luminous Flux 110 lumens (equivalent to 15W incandescent) - Duration 40.000 hours
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • It can also be connected to a remote control and, if necessary, you can disable the built-in command with a 30 sec pressure
Usage
  • Directional light to facilitate reading in bed without disturbing other people who may be present in the room
Avantages
  • It is coordinated with the L.NOW aesthetic
  • Luminous Flux 110 lumens (equivalent to 15W incandescent) - Duration 40.000 hours

Technical characteristics

Suitable for wall mounting Yes
Suitable for suspended mounting No
Suitable for ceiling mounting No
Suitable for built-in mounting Yes
Suitable for surface mounting Yes
Suitable for light line configuration No
Suitable for clamp-mounting No
With mounting material No
Suitable for workplace according to EN 12464-1 No
Lamp type LED not exchangeable
With light source Yes
Suitable for number of light sources 1
Lamp holder Other
Housing material Plastic
Surface protection housing Untreated
Housing colour Black
Material cover Plastic, opal
Type of grid White
Voltage type AC
Nominal voltage (Min-Max) 230-250 V
Nominal current (Min-Max) 15-25 mA
Type of control gear LED operating device voltage-controlled
With control gear No
Exchangeable control gear No
Dimmable Yes
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming manufacturer's proprietary system No
Dimming mains voltage modulation No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming programmable Yes
Dimming potentiometer (integrated) No
Dimming RF No
Dimming Touch and Dim Yes
Dimming Zigbee No
Dimming with push-button Yes
Light distributor Diffuser lens/optic/panel
Light distribution Symmetric/asymmetric
Beam angle Open beam/diffuse
Light outlet Direct
Containing product according to 2019/2020/EU Yes
Degree of protection (IP), rear side IP40
degree of impact strength (IK) IK04
Protection class according to IEC 61140 None
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Emergency power supply system None
Rated ambient temperature according to IEC 62722-2-1 (Min-Max) -5-35 °C
Luminous flux in emergency mode 246 lm
Suitable for emergency lighting No
Emergency function monitoring system None
With switch No
With presence detector No
With movement sensor No
With light sensor No
Covering of the luminaire with thermally insulating material possible No
With air slots Yes
Filament test according to IEC 60695-2-11 None
Suitable for lamp power (Min-Max) 0.1-0.2 W
Luminaire efficacy (Min-Max) 0-0 lm/W
Max. system power 0.3 W
Rated luminous flux according to IEC 62722-2- 1 (Min-Max) 246-246 lm
Colour of light White
Colour temperature (Min-Max) 4000-5500 K
Colour rendering index CRI 80-89
Constant light output (CLO) No
Width 22 mm
Height/depth 375 mm
Length 86 mm
Built-in width 22 mm
Built-in height/depth 86 mm
Type of wiring Ending
Number of poles 2
Conductor cross section 1.5 mm²
Connection type Screwed terminal
Connectable conductor cross section (Min-Max) 1-1.5 mm²
Luminous intensity (Min-Max) 0-0 cd
Colour of light adjustable No
Luminous flux adjustable No
Beam angle adjustable No
Operation by Bluetooth No
Compatible with Casambi No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Ball-proof according to DIN 18032-3 No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 50-60 Hz
Standby consumption 136 mA
Mandatory neutral No
RAL-number 7015
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
With socket outlet No
Fitted with rainproof plate protection No
With complemantary luminous signal No
Supplied remote control No
Maximum Input cable diameter 2.5 mm
Vertical fixing center distance (Min-Max) 9-9.2 mm
Horizontal fixing center distance (Min-Max) 4-4.2 mm
Cable support Screw cable clamp
Auto switch No
Control mode Wired
Addressable No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
