Living Now - lampholder 1 place

Living Now BTICINO

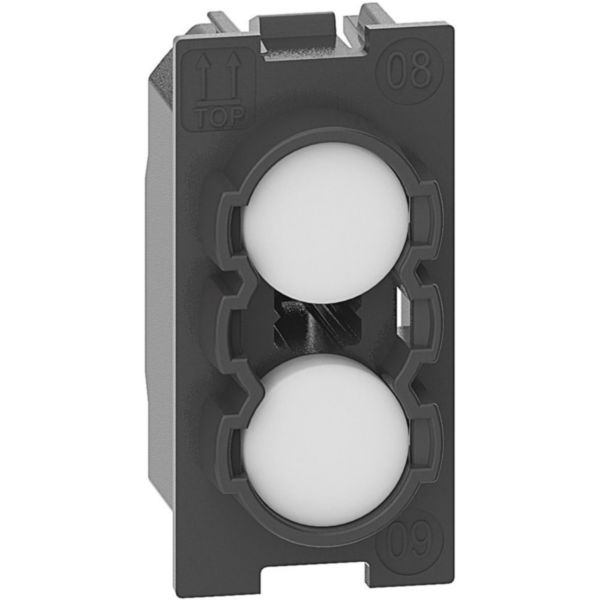

Living Now - lampholder 1 place

REF. BT-K4371 EAN. 8005543653609
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Allows light signaling
  • The device must be completed with the 08 (for one light) or 09 type for (two lights) cover; you can youse the Pilot Led devices available on catalogue depending on the color you would need
  • Need to be compleeted with blu, red or white pilote LED (K4743.., LN4743..or H4743..)
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • Flexibility on chosing the color and the voltage for the pilot LED signalization
Avantages
  • It is coordinated with the L.NOW aesthetic

Technical characteristics

Assembly arrangement Basic element
Number of modules (module system) 1
Lamp holder None
With light source Yes
Lamp type LED exchangeable
With flashlight No
With fixed symbol/imprint No
With exchangeable symbol No
Application as button No
Mounting method Flush-mounted
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 7015
Transparent No
Colour light source Other
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Max. lamp power 5 W
Device width 22 mm
Device height 45 mm
Device depth 27 mm
Min. depth of built-in installation box 30 mm
Built-in depth 20 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Supply current (Min-Max) 10-16 A
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Stress test conformity (1000V) No
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Label space/information surface No
