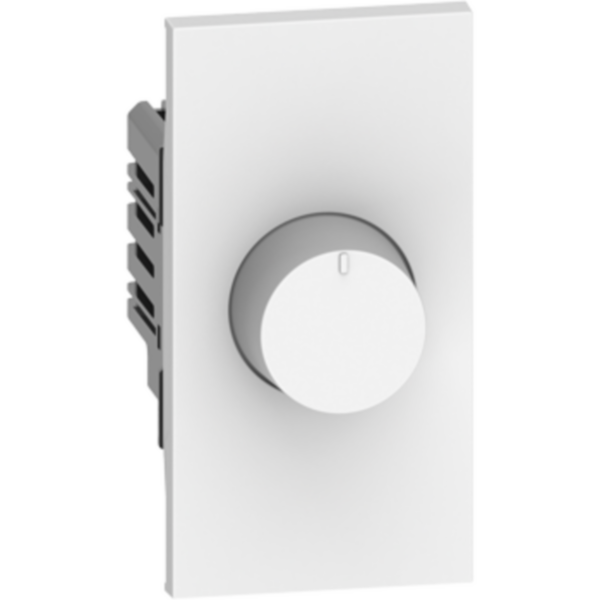

Living Now - Fan control 240V 0-1-2-3, 2 modules, white

Living Now BTICINO

Living Now - Fan control 240V 0-1-2-3, 2 modules, white

REF. BT-KW4017 EAN. 8005543677025
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 4 possible settings : off and three degrees of speed
  • The device is already supplied with its corresponding white 2 - module cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • The ideal solution to adapt the speed of ventilation
Avantages
  • The ideal solution to adapt the speed of ventilation

Technical characteristics

Assembly arrangement Control element
Method of operation Turn button
Wiring system Circuit 0 - 1 - 2 - 3
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 240 V
Type of fastening Other
Min. depth of built-in installation box 44 mm
Width 45 mm
Height 86 mm
Depth 58.5 mm
Built-in depth 34 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Connection type Screwed terminal
Number of terminals 2
Cable nature for connection Flexible or rigid
With socket outlet No
Label space/information surface No
