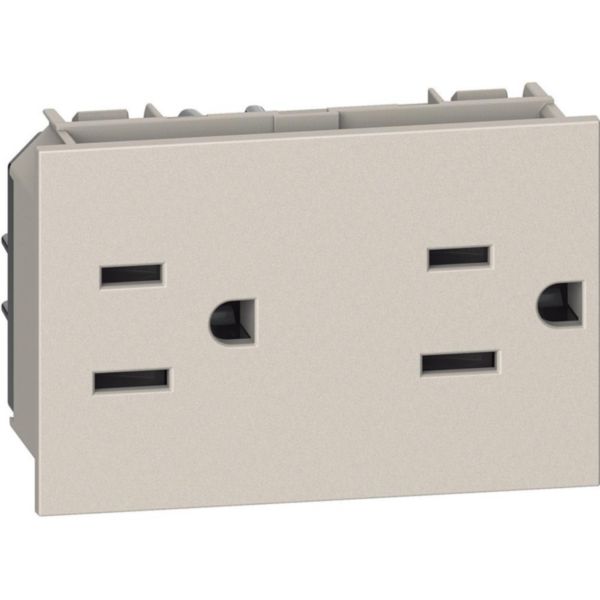

Living Now - Duplex US socket 2P+E, 16 A, 3 modules, sand

Living Now BTICINO

Living Now - Duplex US socket 2P+E, 16 A, 3 modules, sand

REF. BT-KM4188 EAN. 8005543651346
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • The Living Now socket allows to take energy with US 2P+E plugs 16A
  • The device must be completed with a KM52 cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Duplex US Standard 2P+E, 16A, 3 modules, Sand
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • Living Now sockets are provided with contact protection ensuring greater safety at home: these protections shield from accidental electrical contacts in the absence of a plug.
Avantages
  • It is coordinated with the L.NOW aesthetic

Technical characteristics

Model US/CA (NEMA 5-15) (type B)
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 4
Number of active contacts (square) 0
Mounting direction Horizontal
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 2
Socket outlets phase-separated No
Number of modules (module system) 3
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Beige
RAL-number (similar) 1015
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
Number of loop throughs 1
With on/off switch No
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Rated fault current 16 mA
Suitable for degree of protection (IP) IP20
Degree of protection (IP), connected plug IP20
Device width 45 mm
Device height 67 mm
Device depth 34.5 mm
degree of impact strength (IK) IK04
Min. depth of built-in installation box 34.5 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 24.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Terminal marking indication No
Prewired No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Cable support Screw cable clamp
Contains Batteries and/or Accumulator No
Battery ou Accumulator (Pack1) Not applicable
Number of Pack 1 0
Number of Single Element (Pack1) 0
Battery ou Accumulator (Pack2) Not applicable
Number of Pack 2 0
Number of Single Element (Pack2) 0
Connected object No
Application store for download Not applicable
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Energy distribution
