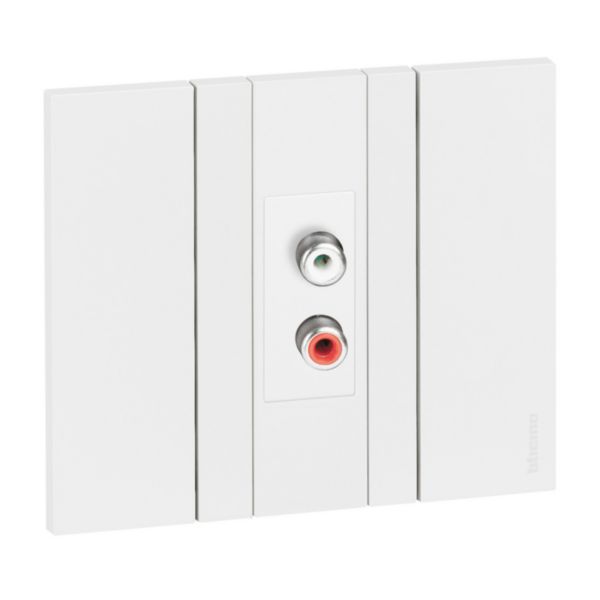

Living Now - Double RCA module - 1 module - white

Name: Living Now - Double RCA module - 1 module - white
SKU: BT-KW4269R

Living Now BTICINO

REF. BT-KW4269R EAN. 8005543621745

Compare You can only compare 4 products, you must remove 1 to add this one

Type of fastening	Engage (snap)
Number of modules (module system)	1
With buses/couplings	Yes
Suitable for number of connectors	2
Isolated connections	No
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
With lighting	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	22 mm
Device height	45 mm
Device depth	38 mm
Min. depth of built-in installation box	31.5 mm
Built-in depth	21.5 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

1 document

Select all

Catalogue Commercial Page

ex223001_0775.pdf pdf (0.09 Mo)

2 documents

Select all

BIM Data

BIM-BTICINO-LIVING-NOW-2025-ENGLISH.rvt rvt (152.05 Mo)

BIM Data

BIM-BTICINO-LIVING-NOW-2025-FRANCAIS.rvt rvt (69.92 Mo)
