Living Now - dimmer cover, 2 modules, sand

Living Now BTICINO

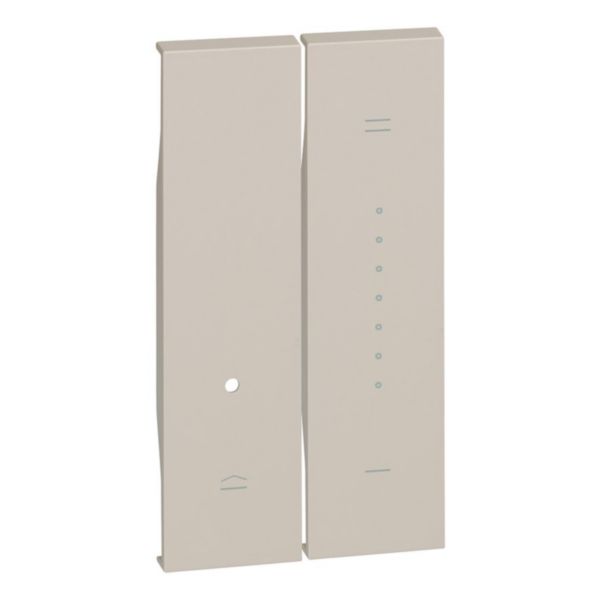

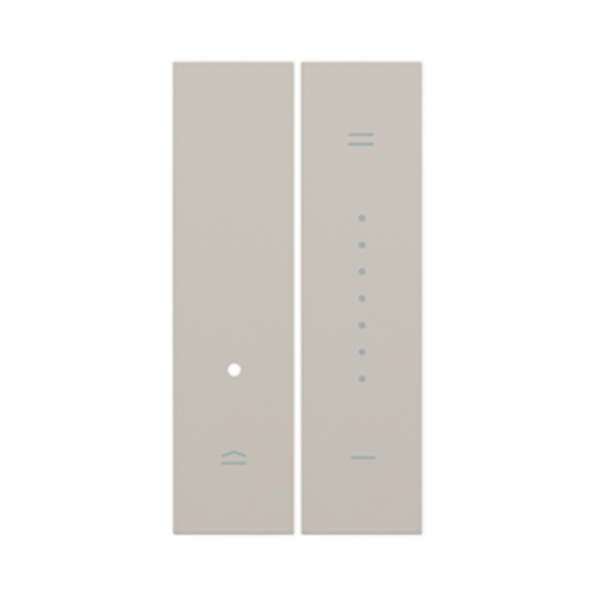

Living Now - dimmer cover, 2 modules, sand

REF. BT-KM19 EAN. 8005543619599
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Sand technopolymer cover with satin finish and silky feel.
  • The cover is equipped with a self - centering system (self - centering System) that allows the plate to be attached while maintaining a perfect flatness of the switch
  • Two cover 1 module, technopolymer, satin sand
  • Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendation / Restriction
  • It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

The product's benefits

Installation
  • Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system
Usage
  • Planar Aesthetic and increased ergonomics thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface
Avantages
  • The covers are equipped with a self-centering system that allows the plate to be attached while maintaining a perfect flatness of the light point
  • You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
  • Easy to clean surface thanks to the planar geometry of the switch and to the surface treatment of the plastics used

Technical characteristics

Model Two-part rocker
Imprint/indication Various symbols
Scannable symbol/barrier free No
Utilization Dimmer
Suitable for touch sensor connector for bus system No
Type of fastening Engage (snap)
Monitoring window/light outlet No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour Beige
RAL-number (similar) 1015
With label area No
With exchangeable lens/symbol No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Width 45 mm
Height 86 mm
Depth 9 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
IDP000277_03-EN.pdf pdf (1.32 Mo)
