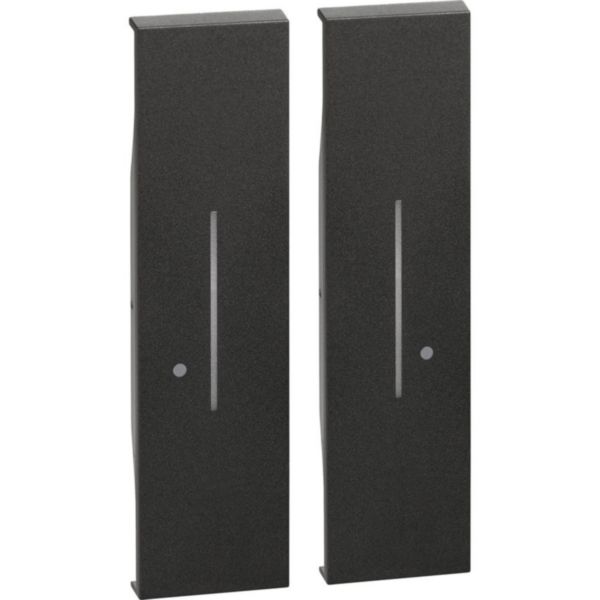

Living Now - Cover for wireless light double, 2modules, black

Living Now Bticino

Living Now - Cover for wireless light double, 2modules, black

REF. BTKG36M2 EAN. 8005543656389
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Two-part button
Imprint/indication None
Scannable symbol/barrier free No
Utilization Switch/push button
Suitable for touch sensor connector for bus system No
Type of fastening Engage (snap)
Monitoring window/light outlet Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour Black
RAL-number (similar) 7015
With label area No
With exchangeable lens/symbol No
degree of impact strength (IK) IK04
Width 45 mm
Height 86 mm
Depth 7 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
IDP000277_03-EN.pdf pdf (1.32 Mo)
2 documents
Brochure
Brochure
2 documents
BIM Data
1 document
Agreement
